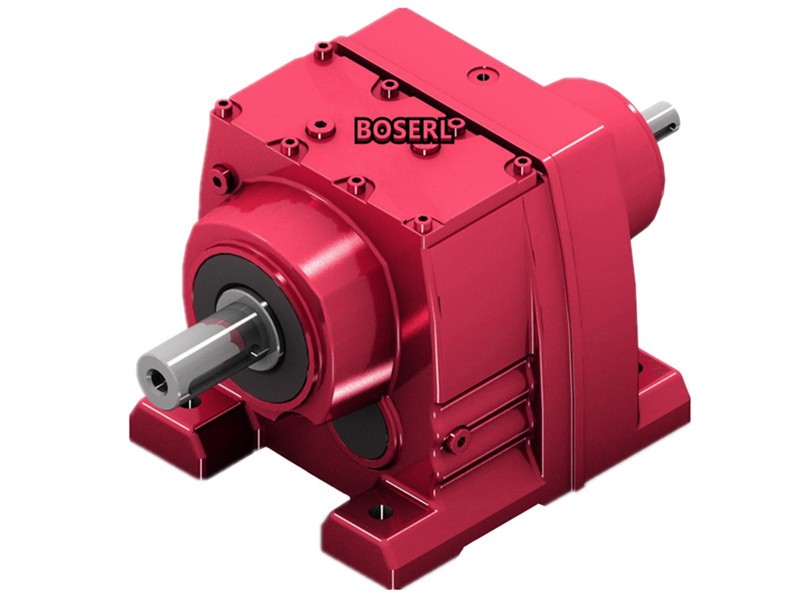

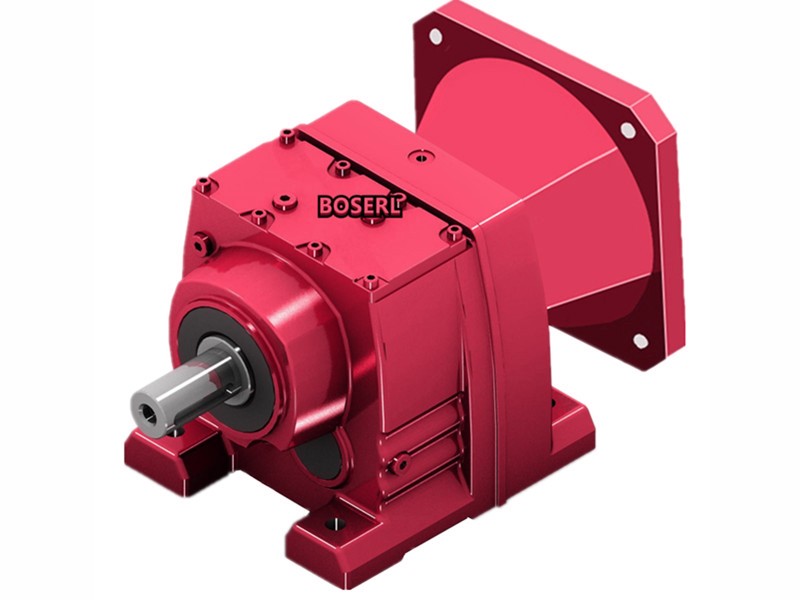

R38減速機詳細信息
R38減速機
訂購熱線：13360667204
R38減速機傳動比計算：齒輪減速馬達
輸送帶參數：輪子直徑80，負載1.5噸，一分鐘走40米
40米÷（0.08輪子直徑×3.14）=159.2轉每分鐘
1.5噸換算成N=15000N
15000×0.04輪子半徑×0.06摩擦系數=36N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍36×2=72N.m
電機轉數1400÷輸出轉數159.2=8.79比
72N.m輸出扭矩÷8.79比=8.19N.m電機扭矩
8.19N.m電機扭矩換算成功率1.3KW以上
對應的R38減速機選型參數：
型號：R38-B1.5KW
減速比：9.47
輸出轉數：151轉每分鐘
輸出扭矩：95N.m
安全系數：1.75
R38減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R38臥式硬齒面斜齒輪減速機型號：
R37FDM100L4R37FDM100LC4R37FDM100LS4R37FDM100M4R37FDM63L4R37FDM63M4R37FDM63MS4R37FDM63S4R37FDM71D4R37FDM71M4R37FDM71MS4R37FDM71S4R37FDM80K4R37FDM80M4R37FDM80MK4R37FDM80N4R37FDM80S4R37FDM90L4R37FDM90M4R37FDM90S4R37FDR100L4R37FDR100LC4R37FDR100LS4R37FDR100M4R37FDR63L4R37FDR63M4R37FDR63MS4R37FDR63S4R37FDR71D4R37FDR71M4R37FDR71MS4R37FDR71S4R37FDR80K4R37FDR80M4R37FDR80MK4R37FDR80N4R37FDR80S4R37FDR90L4R37FDR90M4R37FDR90S4R37FDRE100L4R37FDRE100LC4R37FDRE100LS4R37FDRE100M4R37FDRE63L4R37FDRE63M4R37FDRE63MS4R37FDRE63S4R37FDRE71D4R37FDRE71M4R37FDRE71MS4R37FDRE71S4R37FDRE80K4R37FDRE80M4R37FDRE80MK4R37FDRE80N4R37FDRE80S4R37FDRE90L4R37FDRE90M4R37FDRE90S4R37FDRN100L4R37FDRN100LC4R37FDRN100LS4R37FDRN100M4R37FDRN63L4R37FDRN63M4R37FDRN63MS4R37FDRN63S4R37FDRN71D4R37FDRN71M4R37FDRN71MS4R37FDRN71S4R37FDRN80K4R37FDRN80M4R37FDRN80MK4R37FDRN80N4R37FDRN80S4R37FDRN90L4R37FDRN90M4R37FDRN90S4R37FDRS100L4R37FDRS100LC4R37FDRS100LS4R37FDRS100M4R37FDRS63L4R37FDRS63M4R37FDRS63MS4R37FDRS63S4R37FDRS71D4R37FDRS71M4R37FDRS71MS4R37FDRS71S4R37FDRS80K4R37FDRS80M4R37FDRS80MK4R37FDRS80N4R37FDRS80S4R37FDRS90L4R37FDRS90M4R37FDRS90S4R37FDT100L4R37FDT100LC4R37FDT100LS4R37FDT100M4R37FDT63L4R37FDT63M4R37FDT63MS4R37FDT63S4R37FDT71D4R37FDT71M4R37FDT71MS4R37FDT71S4R37FDT80K4R37FDT80M4R37FDT80MK4R37FDT80N4R37FDT80S4R37FDT90L4R37FDT90M4R37FDT90S4R37FDV100L4R37FDV100LC4R37FDV100LS4R37FDV100M4R37FDV63L4R37FDV63M4R37FDV63MS4R37FDV63S4R37FDV71D4R37FDV71M4R37FDV71MS4R37FDV71S4R37FDV80K4R37FDV80M4R37FDV80MK4R37FDV80N4R37FDV80S4R37FDV90L4R37FDV90M4R37FDV90S4R37FDVE100L4R37FDVE100LC4R37FDVE100LS4R37FDVE100M4R37FDVE63L4R37FDVE63M4R37FDVE63MS4R37FDVE63S4R37FDVE71D4R37FDVE71M4R37FDVE71MS4R37FDVE71S4R37FDVE80K4R37FDVE80M4R37FDVE80MK4R37FDVE80N4R37FDVE80S4R37FDVE90L4R37FDVE90M4R37FDVE90S4R37F-Y0.12KWR37F-Y0.18KWR37F-Y0.25KWR37F-Y0.37KWR37F-Y0.55KWR37F-Y0.75KWR37F-Y1.1KWR37F-Y1.5KWR37F-Y100M4R37F-Y2.2KWR37F-Y3KWR37F-Y63M4R37F-Y71M4R37F-Y80M4R37F-Y90M4R37F-YEJ0.12KWR37F-YEJ0.18KWR37F-YEJ0.25KWR37F-YEJ0.37KWR37F-YEJ0.55KWR37F-YEJ0.75KWR37F-YEJ1.1KWR37F-YEJ1.5KWR37F-YEJ100M4R37F-YEJ2.2KWR37F-YEJ3KWR37F-YEJ63M4R37F-YEJ71M4R37F-YEJ80M4R37F-YEJ90M4R37F-YVP0.12KWR37F-YVP0.18KWR37F-YVP0.25KWR37F-YVP0.37KWR37F-YVP0.55KWR37F-YVP0.75KWR37F-YVP1.1KWR37F-YVP1.5KWR37F-YVP100M4R37F-YVP2.2KWR37F-YVP3KWR37F-YVP63M4R37F-YVP71M4R37F-YVP80M4R37F-YVP90M4R37F-YVPEJ0.12KWR37F-YVPEJ0.18KWR37F-YVPEJ0.25KWR37F-YVPEJ0.37KWR37F-YVPEJ0.55KWR37F-YVPEJ0.75KWR37F-YVPEJ1.1KWR37F-YVPEJ1.5KWR37F-YVPEJ100M4R37F-YVPEJ2.2KWR37F-YVPEJ3KWR37F-YVPEJ63M4R37F-YVPEJ71M4R37F-YVPEJ80M4R37F-YVPEJ90M4。
R37系列減速機參數大全：同軸斜齒輪減速電機
R37F減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y0.12KW | 134.82 | 0.12KW | 14kg | 5750N |
| R37F-Y0.12KW | 123.66 | 0.12KW | 14kg | 5800N |
| R37F-Y0.12KW | 105.28 | 0.12KW | 14kg | 5880N |
| R37F-Y0.12KW | 90.77 | 0.12KW | 14kg | 5930N |
| R37F-Y0.12KW | 84.61 | 0.12KW | 14kg | 5950N |
| R37F-Y0.12KW | 73.96 | 0.12KW | 14kg | 5980N |
R37F減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y0.18KW | 134.82 | 0.18KW | 14.5kg | 5230N |
| R37F-Y0.18KW | 123.66 | 0.18KW | 14.5kg | 5370N |
| R37F-Y0.18KW | 105.28 | 0.18KW | 14.5kg | 5580N |
| R37F-Y0.18KW | 90.77 | 0.18KW | 14.5kg | 5710N |
| R37F-Y0.18KW | 84.61 | 0.18KW | 14.5kg | 5760N |
| R37F-Y0.18KW | 73.96 | 0.18KW | 14.5kg | 5840N |
| R37F-Y0.18KW | 69.33 | 0.18KW | 14.5kg | 5870N |
| R37F-Y0.18KW | 61.18 | 0.18KW | 14.5kg | 5920N |
| R37F-Y0.18KW | 55.76 | 0.18KW | 14.5kg | 5940N |
| R37F-Y0.18KW | 48.08 | 0.18KW | 14.5kg | 5960N |
R37F減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y0.25KW | 134.82 | 0.25KW | 18.5kg | 2630N |
| R37F-Y0.25KW | 123.66 | 0.25KW | 18.5kg | 4560N |
| R37F-Y0.25KW | 105.28 | 0.25KW | 18.5kg | 5030N |
| R37F-Y0.25KW | 90.77 | 0.25KW | 18.5kg | 5320N |
| R37F-Y0.25KW | 84.61 | 0.25KW | 18.5kg | 5420N |
| R37F-Y0.25KW | 73.96 | 0.25KW | 18.5kg | 5580N |
| R37F-Y0.25KW | 69.33 | 0.25KW | 18.5kg | 5650N |
| R37F-Y0.25KW | 61.18 | 0.25KW | 18.5kg | 5750N |
| R37F-Y0.25KW | 55.76 | 0.25KW | 18.5kg | 5800N |
| R37F-Y0.25KW | 48.08 | 0.25KW | 18.5kg | 5870N |
| R37F-Y0.25KW | 44.81 | 0.25KW | 18.5kg | 5760N |
| R37F-Y0.25KW | 39.17 | 0.25KW | 18.5kg | 5540N |
| R37F-Y0.25KW | 36.72 | 0.25KW | 18.5kg | 5430N |
| R37F-Y0.25KW | 32.4 | 0.25KW | 18.5kg | 5230N |
R37F減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y0.37KW | 90.77 | 0.37KW | 19kg | 4250N |
| R37F-Y0.37KW | 84.61 | 0.37KW | 19kg | 4720N |
| R37F-Y0.37KW | 73.96 | 0.37KW | 19kg | 5070N |
| R37F-Y0.37KW | 69.33 | 0.37KW | 19kg | 5210N |
| R37F-Y0.37KW | 61.18 | 0.37KW | 19kg | 5410N |
| R37F-Y0.37KW | 55.76 | 0.37KW | 19kg | 5530N |
| R37F-Y0.37KW | 48.08 | 0.37KW | 19kg | 5580N |
| R37F-Y0.37KW | 44.81 | 0.37KW | 19kg | 5480N |
| R37F-Y0.37KW | 39.17 | 0.37KW | 19kg | 5280N |
| R37F-Y0.37KW | 36.72 | 0.37KW | 19kg | 5190N |
| R37F-Y0.37KW | 32.40 | 0.37KW | 19kg | 5010N |
| R37F-Y0.37KW | 28.73 | 0.37KW | 19kg | 4850N |
| R37F-Y0.37KW | 24.42 | 0.37KW | 19kg | 4620N |
| R37F-Y0.37KW | 28.32 | 0.37KW | 19kg | 4830N |
| R37F-Y0.37KW | 26.03 | 0.37KW | 19kg | 4710N |
| R37F-Y0.37KW | 22.27 | 0.37KW | 19kg | 4500N |
| R37F-Y0.37KW | 19.31 | 0.37KW | 19kg | 4320N |
| R37F-Y0.37KW | 18.05 | 0.37KW | 19kg | 4230N |
| R37F-Y0.37KW | 15.60 | 0.37KW | 19kg | 4050N |
| R37F-Y0.37KW | 13.25 | 0.37KW | 19kg | 3850N |
| R37F-Y0.37KW | 11.83 | 0.37KW | 19kg | 3720N |
R37F減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y0.55KW | 61.18 | 0.55KW | 23.5kg | 4210N |
| R37F-Y0.55KW | 55.76 | 0.55KW | 23.5kg | 4780N |
| R37F-Y0.55KW | 48.08 | 0.55KW | 23.5kg | 5150N |
| R37F-Y0.55KW | 44.81 | 0.55KW | 23.5kg | 5220N |
| R37F-Y0.55KW | 39.17 | 0.55KW | 23.5kg | 5050N |
| R37F-Y0.55KW | 36.72 | 0.55KW | 23.5kg | 4980N |
| R37F-Y0.55KW | 32.4 | 0.55KW | 23.5kg | 4820N |
| R37F-Y0.55KW | 28.73 | 0.55KW | 23.5kg | 4680N |
| R37F-Y0.55KW | 24.42 | 0.55KW | 23.5kg | 4480N |
| R37F-Y0.55KW | 22.27 | 0.55KW | 23.5kg | 4370N |
| R37F-Y0.55KW | 19.31 | 0.55KW | 23.5kg | 4200N |
| R37F-Y0.55KW | 18.05 | 0.55KW | 23.5kg | 4120N |
| R37F-Y0.55KW | 15.6 | 0.55KW | 23.5kg | 3960N |
| R37F-Y0.55KW | 13.25 | 0.55KW | 23.5kg | 3780N |
| R37F-Y0.55KW | 11.83 | 0.55KW | 23.5kg | 3650N |
R37F減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y0.75KW | 48.08 | 0.75KW | 24.5kg | 3550N |
| R37F-Y0.75KW | 44.81 | 0.75KW | 24.5kg | 4480N |
| R37F-Y0.75KW | 39.17 | 0.75KW | 24.5kg | 4760N |
| R37F-Y0.75KW | 36.72 | 0.75KW | 24.5kg | 4700N |
| R37F-Y0.75KW | 32.40 | 0.75KW | 24.5kg | 4570N |
| R37F-Y0.75KW | 28.73 | 0.75KW | 24.5kg | 4450N |
| R37F-Y0.75KW | 24.42 | 0.75KW | 24.5kg | 4280N |
| R37F-Y0.75KW | 22.27 | 0.75KW | 24.5kg | 4180N |
| R37F-Y0.75KW | 19.31 | 0.75KW | 24.5kg | 4040N |
| R37F-Y0.75KW | 18.05 | 0.75KW | 24.5kg | 3960N |
| R37F-Y0.75KW | 15.60 | 0.75KW | 24.5kg | 3810N |
| R37F-Y0.75KW | 13.25 | 0.75KW | 24.5kg | 3650N |
| R37F-Y0.75KW | 11.83 | 0.75KW | 24.5kg | 3540N |
| R37F-Y0.75KW | 10.11 | 0.75KW | 24.5kg | 3380N |
| R37F-Y0.75KW | 9.47 | 0.75KW | 24.5kg | 3320N |
R37F減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y1.1KW | 32.40 | 1.1KW | 28.5kg | 2950N |
| R37F-Y1.1KW | 28.73 | 1.1KW | 28.5kg | 3340N |
| R37F-Y1.1KW | 24.42 | 1.1KW | 28.5kg | 3750N |
| R37F-Y1.1KW | 19.31 | 1.1KW | 28.5kg | 3830N |
| R37F-Y1.1KW | 18.05 | 1.1KW | 28.5kg | 3780N |
| R37F-Y1.1KW | 15.60 | 1.1KW | 28.5kg | 3650N |
| R37F-Y1.1KW | 13.25 | 1.1KW | 28.5kg | 3510N |
| R37F-Y1.1KW | 11.83 | 1.1KW | 28.5kg | 3410N |
| R37F-Y1.1KW | 10.11 | 1.1KW | 28.5kg | 3280N |
| R37F-Y1.1KW | 9.47 | 1.1KW | 28.5kg | 3220N |
| R37F-Y1.1KW | 7.97 | 1.1KW | 28.5kg | 3080N |
| R37F-Y1.1KW | 6.67 | 1.1KW | 28.5kg | 2910N |
| R37F-Y1.1KW | 5.67 | 1.1KW | 28.5kg | 2780N |
| R37F-Y1.1KW | 5.06 | 1.1KW | 28.5kg | 2690N |
R37F減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y1.5KW | 19.31 | 1.5KW | 31.5kg | 2700N |
| R37F-Y1.5KW | 18.05 | 1.5KW | 31.5kg | 2880N |
| R37F-Y1.5KW | 15.60 | 1.5KW | 31.5kg | 3190N |
| R37F-Y1.5KW | 13.25 | 1.5KW | 31.5kg | 3340N |
| R37F-Y1.5KW | 11.83 | 1.5KW | 31.5kg | 3260N |
| R37F-Y1.5KW | 10.11 | 1.5KW | 31.5kg | 3140N |
| R37F-Y1.5KW | 9.47 | 1.5KW | 31.5kg | 3100N |
| R37F-Y1.5KW | 7.97 | 1.5KW | 31.5kg | 2970N |
| R37F-Y1.5KW | 6.67 | 1.5KW | 31.5kg | 2810N |
| R37F-Y1.5KW | 5.67 | 1.5KW | 31.5kg | 2700N |
| R37F-Y1.5KW | 5.06 | 1.5KW | 31.5kg | 2620N |
| R37F-Y1.5KW | 4.32 | 1.5KW | 31.5kg | 2510N |
| R37F-Y1.5KW | 4.05 | 1.5KW | 31.5kg | 2460N |
| R37F-Y1.5KW | 3.41 | 1.5KW | 31.5kg | 2350N |
R37F減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y2.2KW | 15.06 | 2.2KW | 40.5kg | 1110N |
| R37F-Y2.2KW | 13.25 | 2.2KW | 40.5kg | 1690N |
| R37F-Y2.2KW | 11.83 | 2.2KW | 40.5kg | 2010N |
| R37F-Y2.2KW | 10.11 | 2.2KW | 40.5kg | 2380N |
| R37F-Y2.2KW | 9.47 | 2.2KW | 40.5kg | 2500N |
| R37F-Y2.2KW | 7.97 | 2.2KW | 40.5kg | 2760N |
| R37F-Y2.2KW | 6.67 | 2.2KW | 40.5kg | 2480N |
| R37F-Y2.2KW | 5.67 | 2.2KW | 40.5kg | 2560N |
| R37F-Y2.2KW | 5.06 | 2.2KW | 40.5kg | 2500N |
| R37F-Y2.2KW | 4.32 | 2.2KW | 40.5kg | 2400N |
| R37F-Y2.2KW | 4.05 | 2.2KW | 40.5kg | 2370N |
| R37F-Y2.2KW | 3.41 | 2.2KW | 40.5kg | 2270N |
R37F減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R37F-Y3KW | 10.11 | 3KW | 43.5kg | 920N |
| R37F-Y3KW | 9.47 | 3KW | 43.5kg | 1130N |
| R37F-Y3KW | 7.97 | 3KW | 43.5kg | 1610N |
| R37F-Y3KW | 6.67 | 3KW | 43.5kg | 1350N |
| R37F-Y3KW | 5.67 | 3KW | 43.5kg | 1700N |
| R37F-Y3KW | 5.06 | 3KW | 43.5kg | 1900N |
| R37F-Y3KW | 4.32 | 3KW | 43.5kg | 2110N |
| R37F-Y3KW | 4.05 | 3KW | 43.5kg | 2180N |
| R37F-Y3KW | 3.41 | 3KW | 43.5kg | 2160N |
R38減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R28減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
