KF108減速電機詳細信息

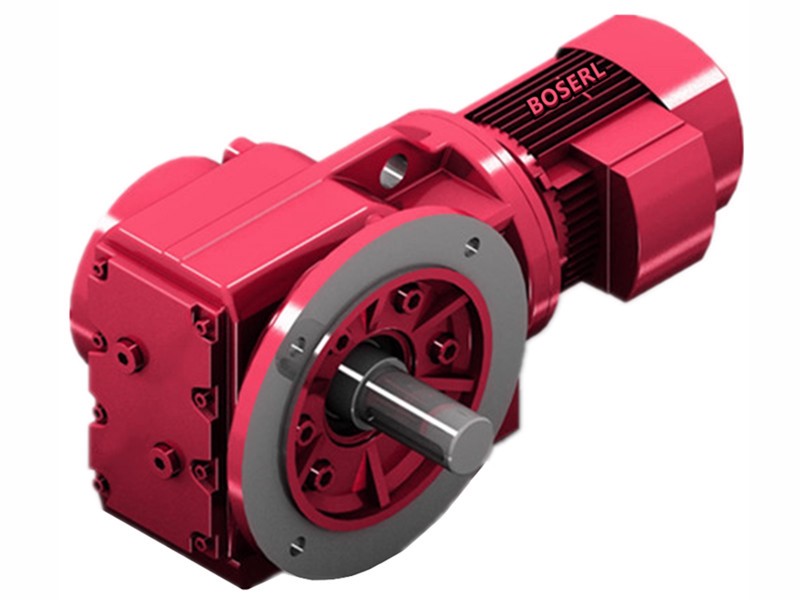

KF108減速電機
訂購熱線：13360667204
KF108減速電機選型計算：齒輪減速馬達
槳式攪拌機參數：攪動飼料2.2噸，每分鐘攪動58圈，攪拌槳輪直徑117
電機轉數1400÷58圈（輸出轉速）=減速比24.14
攪拌2.2噸=21560N
21560N×0.0585攪拌槳輪半徑=1261.26×2攪拌水狀物料扭矩放大兩倍=2522.52N.m
2522.52N.m÷24.14減速比=105.5N.m電機扭矩
105.5N.m電機扭矩換算成功率16.59KW以上
對應的KF108減速機選型參數：
型號：KF108-BEJ18.5KW
減速比：26.32
輸出轉數：56轉每分鐘
輸出扭矩：3170N.m
安全系數：2.3
KF108減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機

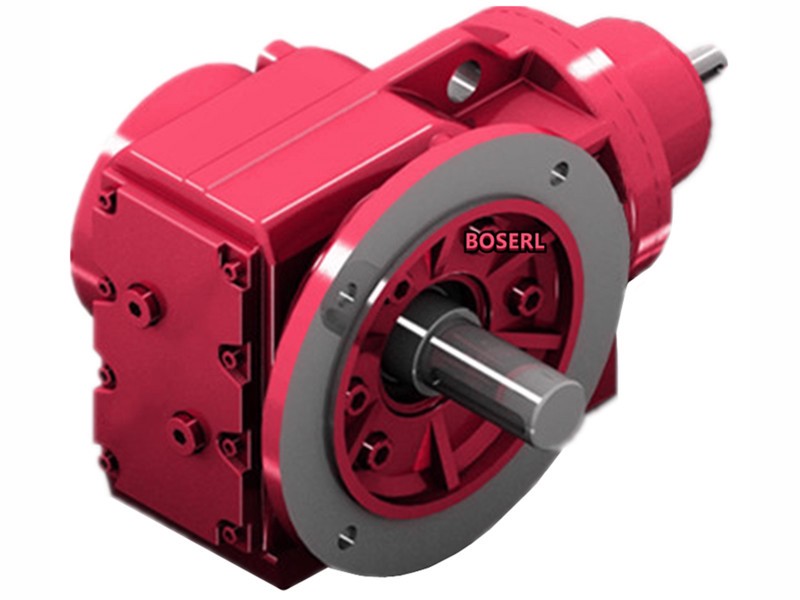

KF108斜齒輪傘齒輪減速機型號：
KF108減速電機型號參數：直角減速機
KF108減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y3KW | 3KW | 9.8rpm | 2930N.m | 2.7 |
| K107Y3KW | 3KW | 12rpm | 2480N.m | 3.2 |
KF108減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y4KW | 4KW | 10rpm | 3820N.m | 2.1 |
| K107Y4KW | 4KW | 12rpm | 3230N.m | 2.5 |
| K107Y4KW | 4KW | 13rpm | 2990N.m | 2.7 |
| K107Y4KW | 4KW | 14rpm | 2680N.m | 3 |
| K107Y4KW | 4KW | 16rpm | 2420N.m | 3.3 |
| K107Y4KW | 4KW | 17rpm | 2200N.m | 3.6 |
| K107Y4KW | 4KW | 20rpm | 1950N.m | 4.1 |
KF108減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y5.5KW | 5.5KW | 10rpm | 5210N.m | 1.55 |
| K107Y5.5KW | 5.5KW | 12rpm | 4410N.m | 1.8 |
| K107Y5.5KW | 5.5KW | 13rpm | 4080N.m | 1.95 |
| K107Y5.5KW | 5.5KW | 14rpm | 3660N.m | 2.2 |
| K107Y5.5KW | 5.5KW | 16rpm | 3300N.m | 2.4 |
| K107Y5.5KW | 5.5KW | 17rpm | 3000N.m | 2.7 |
KF108減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y7.5KW | 7.5KW | 10rpm | 7110N.m | 1.15 |
| K107Y7.5KW | 7.5KW | 12rpm | 6020N.m | 1.35 |
| K107Y7.5KW | 7.5KW | 13rpm | 5570N.m | 1.45 |
| K107Y7.5KW | 7.5KW | 14rpm | 4990N.m | 1.6 |
| K107Y7.5KW | 7.5KW | 16rpm | 4500N.m | 1.75 |
| K107Y7.5KW | 7.5KW | 17rpm | 4090N.m | 1.95 |
| K107Y7.5KW | 7.5KW | 20rpm | 3630N.m | 2.2 |
| K107Y7.5KW | 7.5KW | 22rpm | 3290N.m | 2.4 |
| K107Y7.5KW | 7.5KW | 25rpm | 2830N.m | 2.8 |
| K107Y7.5KW | 7.5KW | 29rpm | 2470N.m | 3.2 |
| K107Y7.5KW | 7.5KW | 34rpm | 2090N.m | 3.5 |
| K107Y7.5KW | 7.5KW | 39rpm | 1830N.m | 3.9 |
KF108減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y11KW | 11KW | 13rpm | 8080N.m | 1 |
| K107Y11KW | 11KW | 14rpm | 7240N.m | 1.1 |
| K107Y11KW | 11KW | 16rpm | 6540N.m | 1.2 |
| K107Y11KW | 11KW | 18rpm | 5940N.m | 1.35 |
| K107Y11KW | 11KW | 20rpm | 5270N.m | 1.5 |
| K107Y11KW | 11KW | 22rpm | 4780N.m | 1.65 |
| K107Y11KW | 11KW | 26rpm | 4110N.m | 1.95 |
| K107Y11KW | 11KW | 29rpm | 3590N.m | 2.2 |
| K107Y11KW | 11KW | 34rpm | 3040N.m | 2.4 |
| K107Y11KW | 11KW | 39rpm | 2660N.m | 2.7 |
KF108減速機配15KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y15KW | 15KW | 16rpm | 8920N.m | 0.9 |
| K107Y15KW | 15KW | 18rpm | 8110N.m | 1 |
| K107Y15KW | 15KW | 20rpm | 7190N.m | 1.1 |
| K107Y15KW | 15KW | 22rpm | 6530N.m | 1.25 |
| K107Y15KW | 15KW | 26rpm | 5610N.m | 1.45 |
| K107Y15KW | 15KW | 29rpm | 4900N.m | 1.6 |
| K107Y15KW | 15KW | 34rpm | 4150N.m | 1.75 |
| K107Y15KW | 15KW | 39rpm | 3630N.m | 2 |
| K107Y15KW | 15KW | 45rpm | 3210N.m | 2.3 |
| K107Y15KW | 15KW | 47rpm | 3070N.m | 2.2 |
| K107Y15KW | 15KW | 50rpm | 2840N.m | 2.5 |
KF108減速機配18.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y18.5KW | 18.5KW | 20rpm | 8860N.m | 0.9 |
| K107Y18.5KW | 18.5KW | 22rpm | 8040N.m | 1 |
| K107Y18.5KW | 18.5KW | 26rpm | 6910N.m | 1.15 |
| K107Y18.5KW | 18.5KW | 29rpm | 6030N.m | 1.3 |
| K107Y18.5KW | 18.5KW | 34rpm | 5120N.m | 1.45 |
| K107Y18.5KW | 18.5KW | 39rpm | 4470N.m | 1.6 |
| K107Y18.5KW | 18.5KW | 45rpm | 3950N.m | 1.8 |
| K107Y18.5KW | 18.5KW | 47rpm | 3780N.m | 1.8 |
| K107Y18.5KW | 18.5KW | 50rpm | 3500N.m | 2 |
| K107Y18.5KW | 18.5KW | 55rpm | 3180N.m | 2.3 |
| K107Y18.5KW | 18.5KW | 65rpm | 21730N.m | 2.6 |
| K107Y18.5KW | 18.5KW | 74rpm | 2380N.m | 3 |
| K107Y18.5KW | 18.5KW | 87rpm | 2020N.m | 3.5 |
KF108減速機配22KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y22KW | 22KW | 26rpm | 8220N.m | 0.95 |
| K107Y22KW | 22KW | 29rpm | 7180N.m | 1.1 |
| K107Y22KW | 22KW | 34rpm | 6090N.m | 1.2 |
| K107Y22KW | 22KW | 39rpm | 5320N.m | 1.35 |
| K107Y22KW | 22KW | 45rpm | 4700N.m | 1.55 |
| K107Y22KW | 22KW | 47rpm | 4500N.m | 1.5 |
| K107Y22KW | 22KW | 50rpm | 4170N.m | 1.75 |
| K107Y22KW | 22KW | 55rpm | 3780N.m | 1.9 |
| K107Y22KW | 22KW | 65rpm | 3250N.m | 2.2 |
| K107Y22KW | 22KW | 74rpm | 2840N.m | 2.5 |
| K107Y22KW | 22KW | 87rpm | 2400N.m | 2.9 |
| K107Y22KW | 22KW | 100rpm | 2100N.m | 3.3 |
| K107Y22KW | 22KW | 109rpm | 1930N.m | 2.2 |
| K107Y22KW | 22KW | 125rpm | 1680N.m | 2.6 |
| K107Y22KW | 22KW | 147rpm | 1430N.m | 2.9 |
KF108減速機配30KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y30KW | 30KW | 35rpm | 8220N.m | 0.9 |
| K107Y30KW | 30KW | 40rpm | 7190N.m | 1 |
| K107Y30KW | 30KW | 47rpm | 6080N.m | 1.1 |
| K107Y30KW | 30KW | 51rpm | 5630N.m | 1.3 |
| K107Y30KW | 30KW | 56rpm | 5110N.m | 1.4 |
| K107Y30KW | 30KW | 65rpm | 4390N.m | 1.65 |
| K107Y30KW | 30KW | 75rpm | 3830N.m | 1.9 |
| K107Y30KW | 30KW | 88rpm | 3250N.m | 2.2 |
| K107Y30KW | 30KW | 101rpm | 2840N.m | 2.4 |
| K107Y30KW | 30KW | 110rpm | 2610N.m | 1.65 |
| K107Y30KW | 30KW | 126rpm | 2280N.m | 1.9 |
| K107Y30KW | 30KW | 148rpm | 1930N.m | 2.2 |
| K107Y30KW | 30KW | 170rpm | 1690N.m | 2.4 |
KF108減速機配37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y37KW | 37KW | 40rpm | 8890N.m | 0.8 |
| K107Y37KW | 37KW | 47rpm | 7510N.m | 0.9 |
| K107Y37KW | 37KW | 51rpm | 6960N.m | 1.05 |
| K107Y37KW | 37KW | 56rpm | 6320N.m | 1.15 |
| K107Y37KW | 37KW | 65rpm | 5430N.m | 1.3 |
| K107Y37KW | 37KW | 74rpm | 4740N.m | 1.5 |
| K107Y37KW | 37KW | 88rpm | 4020N.m | 1.75 |
| K107Y37KW | 37KW | 100rpm | 3510N.m | 1.95 |
| K107Y37KW | 37KW | 109rpm | 3220N.m | 1.35 |
| K107Y37KW | 37KW | 125rpm | 2810N.m | 1.55 |
| K107Y37KW | 37KW | 148rpm | 2380N.m | 1.75 |
| K107Y37KW | 37KW | 169rpm | 2080N.m | 1.95 |
KF108減速機配45KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K107Y45KW | 45KW | 51rpm | 8410N.m | 0.85 |
| K107Y45KW | 45KW | 56rpm | 7630N.m | 0.95 |
| K107Y45KW | 45KW | 65rpm | 6560N.m | 1.1 |
| K107Y45KW | 45KW | 75rpm | 5730N.m | 1.25 |
| K107Y45KW | 45KW | 88rpm | 4860N.m | 1.45 |
| K107Y45KW | 45KW | 101rpm | 4240N.m | 1.6 |
| K107Y45KW | 45KW | 110rpm | 3890N.m | 1.1 |
| K107Y45KW | 45KW | 126rpm | 3400N.m | 1.25 |
| K107Y45KW | 45KW | 149rpm | 2880N.m | 1.45 |
| K107Y45KW | 45KW | 170rpm | 2520N.m | 1.6 |
KF108減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K108減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
