SA88減速電機詳細信息
SA88減速電機
訂購熱線：13360667204
SA88減速電機功率計算公式：齒輪減速馬達
翻轉機參數：滾輪直徑490，翻轉4600公斤，一分鐘翻轉11轉
4600公斤換算成扭矩=4508N.m
4508N.m×0.245滾筒半徑=1104.46N.m
電機轉數1400÷輸出轉數11=127.27比
1104.46N.m輸出扭矩÷127.27比=8.68N.m電機扭矩
8.68N.m電機扭矩換算成功率1.38KW以上
對應的SA88減速機型號參數：
型號：SA88-BVP1.5KW
減速比：123.48
輸出轉數：12轉每分鐘
輸出扭矩：930N.m
安全系數：2.2

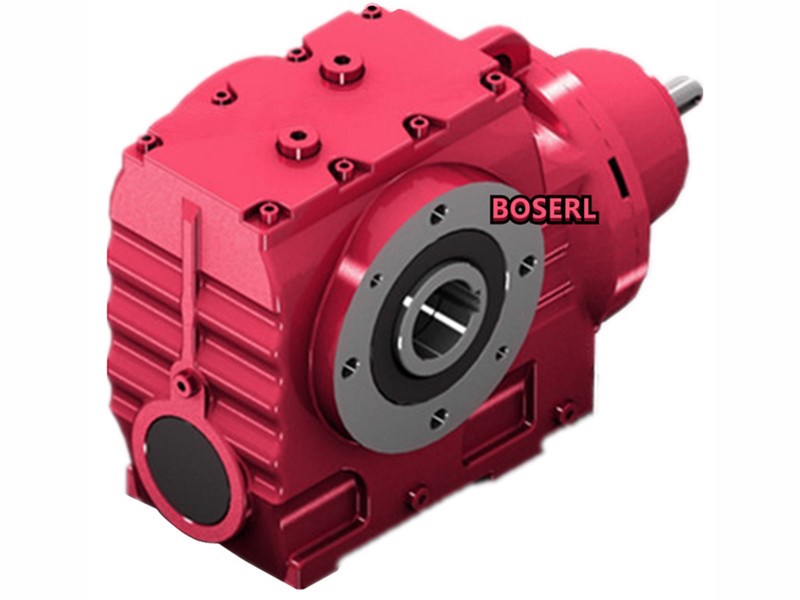

SA88減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機連接減速機
SA88蝸輪減速機型號：

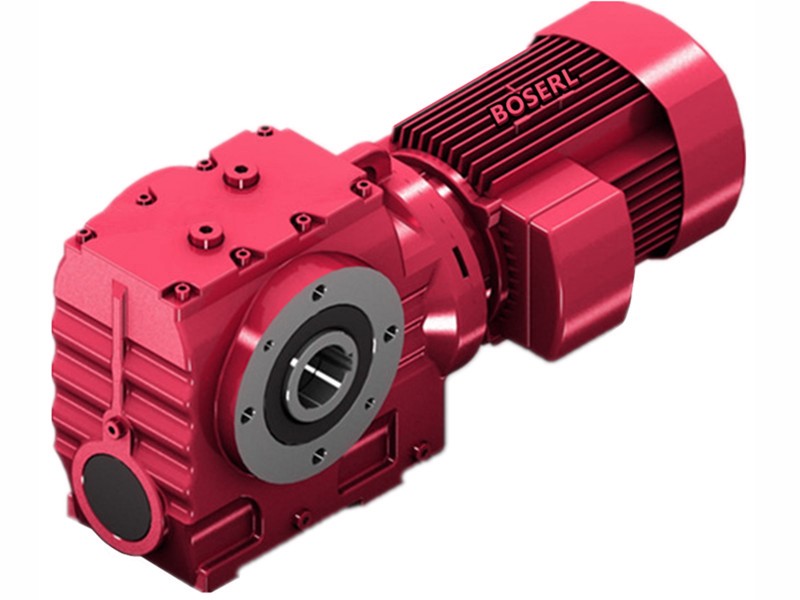

SA88減速電機型號參數：自鎖減速機
SA88減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y0.55KW | 0.55KW | 3.20rpm | 1110N.m | 2.20 |
| S87Y0.55KW | 0.55KW | 3.50rpm | 1000N.m | 2.40 |
| S87Y0.55KW | 0.55KW | 4.10rpm | 880N.m | 2.70 |
| S87Y0.55KW | 0.55KW | 4.50rpm | 810N.m | 2.90 |
SA88減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y0.75KW | 0.75KW | 5.00rpm | 1010N.m | 2.20 |
| S87Y0.75KW | 0.75KW | 5.60rpm | 910N.m | 2.50 |
| S87Y0.75KW | 0.75KW | 6.40rpm | 800N.m | 2.80 |
| S87Y0.75KW | 0.75KW | 7.10rpm | 735N.m | 3.10 |
SA88減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y1.1KW | 1.1KW | 4.90rpm | 1490N.m | 1.50 |
| S87Y1.1KW | 1.1KW | 5.50rpm | 1350N.m | 1.70 |
| S87Y1.1KW | 1.1KW | 6.40rpm | 1180N.m | 1.90 |
| S87Y1.1KW | 1.1KW | 7.00rpm | 1080N.m | 2.10 |
| S87Y1.1KW | 1.1KW | 7.90rpm | 970N.m | 2.30 |
| S87Y1.1KW | 1.1KW | 9.40rpm | 830N.m | 2.60 |
SA88減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y1.5KW | 1.5KW | 5.00rpm | 2030N.m | 1.10 |
| S87Y1.5KW | 1.5KW | 5.50rpm | 1830N.m | 1.25 |
| S87Y1.5KW | 1.5KW | 6.40rpm | 1600N.m | 1.40 |
| S87Y1.5KW | 1.5KW | 7.00rpm | 1470N.m | 1.55 |
| S87Y1.5KW | 1.5KW | 7.90rpm | 1320N.m | 1.65 |
| S87Y1.5KW | 1.5KW | 9.40rpm | 1120N.m | 1.90 |
| S87Y1.5KW | 1.5KW | 10.0rpm | 1040N.m | 2.00 |
| S87Y1.5KW | 1.5KW | 12.0rpm | 930N.m | 2.20 |
| S87Y1.5KW | 1.5KW | 13.0rpm | 840N.m | 2.40 |
| S87Y1.5KW | 1.5KW | 14.0rpm | 760N.m | 2.60 |
SA88減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y2.2KW | 2.2KW | 5.50rpm | 2700N.m | 0.85 |
| S87Y2.2KW | 2.2KW | 6.40rpm | 2360N.m | 0.95 |
| S87Y2.2KW | 2.2KW | 7.00rpm | 2170N.m | 1.05 |
| S87Y2.2KW | 2.2KW | 7.90rpm | 1940N.m | 1.15 |
| S87Y2.2KW | 2.2KW | 9.40rpm | 1650N.m | 1.30 |
| S87Y2.2KW | 2.2KW | 10.0rpm | 1530N.m | 1.35 |
| S87Y2.2KW | 2.2KW | 12.0rpm | 1370N.m | 1.50 |
| S87Y2.2KW | 2.2KW | 13.0rpm | 1230N.m | 1.60 |
| S87Y2.2KW | 2.2KW | 14.0rpm | 1120N.m | 1.75 |
| S87Y2.2KW | 2.2KW | 17.0rpm | 1050N.m | 1.90 |
| S87Y2.2KW | 2.2KW | 17.0rpm | 980N.m | 1.50 |
| S87Y2.2KW | 2.2KW | 18.0rpm | 910N.m | 2.10 |
| S87Y2.2KW | 2.2KW | 20.0rpm | 880N.m | 1.75 |
| S87Y2.2KW | 2.2KW | 22.0rpm | 830N.m | 1.90 |
| S87Y2.2KW | 2.2KW | 25.0rpm | 740N.m | 2.20 |
SA88減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y3KW | 3KW | 8.10rpm | 2600N.m | 0.85 |
| S87Y3KW | 3KW | 9.60rpm | 2210N.m | 0.95 |
| S87Y3KW | 3KW | 10.0rpm | 2050N.m | 1.00 |
| S87Y3KW | 3KW | 12.0rpm | 1830N.m | 1.10 |
| S87Y3KW | 3KW | 13.0rpm | 1650N.m | 1.20 |
| S87Y3KW | 3KW | 15.0rpm | 1490N.m | 1.30 |
| S87Y3KW | 3KW | 17.0rpm | 1310N.m | 1.45 |
| S87Y3KW | 3KW | 18.0rpm | 1400N.m | 1.15 |
| S87Y3KW | 3KW | 19.0rpm | 1180N.m | 1.55 |
| S87Y3KW | 3KW | 21.0rpm | 1210N.m | 1.30 |
| S87Y3KW | 3KW | 23.0rpm | 1110N.m | 1.45 |
| S87Y3KW | 3KW | 26.0rpm | 990N.m | 1.60 |
| S87Y3KW | 3KW | 30.0rpm | 830N.m | 1.90 |
| S87Y3KW | 3KW | 33.0rpm | 770N.m | 2.10 |
| S87Y3KW | 3KW | 37.0rpm | 685N.m | 2.30 |
| S87Y3KW | 3KW | 42.0rpm | 615N.m | 2.60 |
SA88減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y4KW | 4KW | 12.0rpm | 2440N.m | 0.85 |
| S87Y4KW | 4KW | 13.0rpm | 2200N.m | 0.90 |
| S87Y4KW | 4KW | 15.0rpm | 1990N.m | 1.00 |
| S87Y4KW | 4KW | 17.0rpm | 1740N.m | 1.10 |
| S87Y4KW | 4KW | 19.0rpm | 1570N.m | 1.15 |
| S87Y4KW | 4KW | 21.0rpm | 1610N.m | 1.00 |
| S87Y4KW | 4KW | 23.0rpm | 1480N.m | 1.10 |
| S87Y4KW | 4KW | 26.0rpm | 1310N.m | 1.20 |
| S87Y4KW | 4KW | 30.0rpm | 1110N.m | 1.45 |
| S87Y4KW | 4KW | 33.0rpm | 1020N.m | 1.55 |
| S87Y4KW | 4KW | 37.0rpm | 910N.m | 1.75 |
| S87Y4KW | 4KW | 42.0rpm | 820N.m | 1.95 |
| S87Y4KW | 4KW | 46.0rpm | 740N.m | 2.20 |
| S87Y4KW | 4KW | 54.0rpm | 645N.m | 2.50 |
| S87Y4KW | 4KW | 57.0rpm | 615N.m | 2.00 |
SA88減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y5.5KW | 5.5KW | 19.0rpm | 2160N.m | 0.85 |
| S87Y5.5KW | 5.5KW | 26.0rpm | 1810N.m | 0.90 |
| S87Y5.5KW | 5.5KW | 30.0rpm | 1530N.m | 1.05 |
| S87Y5.5KW | 5.5KW | 23.0rpm | 1810N.m | 0.95 |
| S87Y5.5KW | 5.5KW | 33.0rpm | 1410N.m | 1.15 |
| S87Y5.5KW | 5.5KW | 37.0rpm | 1260N.m | 1.25 |
| S87Y5.5KW | 5.5KW | 42.0rpm | 1130N.m | 1.40 |
| S87Y5.5KW | 5.5KW | 46.0rpm | 1020N.m | 1.55 |
| S87Y5.5KW | 5.5KW | 53.0rpm | 890N.m | 1.80 |
| S87Y5.5KW | 5.5KW | 57.0rpm | 850N.m | 1.45 |
| S87Y5.5KW | 5.5KW | 68.0rpm | 715N.m | 1.70 |
| S87Y5.5KW | 5.5KW | 74.0rpm | 660N.m | 1.85 |
| S87Y5.5KW | 5.5KW | 83.0rpm | 585N.m | 2.10 |
| S87Y5.5KW | 5.5KW | 93.0rpm | 525N.m | 2.40 |
| S87Y5.5KW | 5.5KW | 103rpm | 475N.m | 2.60 |
| S87Y5.5KW | 5.5KW | 119rpm | 410N.m | 3.00 |
| S87Y5.5KW | 5.5KW | 133rpm | 370N.m | 3.30 |
SA88減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y7.5KW | 7.5KW | 33.0rpm | 1910N.m | 0.85 |
| S87Y7.5KW | 7.5KW | 38.0rpm | 1700N.m | 0.95 |
| S87Y7.5KW | 7.5KW | 42.0rpm | 1520N.m | 1.05 |
| S87Y7.5KW | 7.5KW | 47.0rpm | 1370N.m | 1.15 |
| S87Y7.5KW | 7.5KW | 54.0rpm | 1200N.m | 1.35 |
| S87Y7.5KW | 7.5KW | 58.0rpm | 1150N.m | 1.10 |
| S87Y7.5KW | 7.5KW | 69.0rpm | 970N.m | 1.30 |
| S87Y7.5KW | 7.5KW | 75.0rpm | 890N.m | 1.40 |
| S87Y7.5KW | 7.5KW | 84.0rpm | 795N.m | 1.55 |
| S87Y7.5KW | 7.5KW | 94.0rpm | 710N.m | 1.75 |
| S87Y7.5KW | 7.5KW | 105rpm | 640N.m | 1.95 |
| S87Y7.5KW | 7.5KW | 120rpm | 555N.m | 2.20 |
| S87Y7.5KW | 7.5KW | 135rpm | 500N.m | 2.50 |
| S87Y7.5KW | 7.5KW | 162rpm | 415N.m | 2.70 |
| S87Y7.5KW | 7.5KW | 186rpm | 360N.m | 2.80 |
SA88減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y11KW | 11KW | 54.0rpm | 1750N.m | 0.90 |
| S87Y11KW | 11KW | 60.0rpm | 1570N.m | 1.00 |
| S87Y11KW | 11KW | 73.0rpm | 1310N.m | 1.20 |
| S87Y11KW | 11KW | 75.0rpm | 1300N.m | 0.95 |
| S87Y11KW | 11KW | 84.0rpm | 1160N.m | 1.05 |
| S87Y11KW | 11KW | 94.0rpm | 1040N.m | 1.20 |
| S87Y11KW | 11KW | 105rpm | 930N.m | 1.30 |
| S87Y11KW | 11KW | 121rpm | 810N.m | 1.50 |
| S87Y11KW | 11KW | 135rpm | 730N.m | 1.70 |
| S87Y11KW | 11KW | 163rpm | 605N.m | 1.85 |
| S87Y11KW | 11KW | 187rpm | 530N.m | 1.90 |
SA88減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S87Y15KW | 15KW | 94.0rpm | 1430N.m | 0.85 |
| S87Y15KW | 15KW | 104rpm | 1280N.m | 0.95 |
| S87Y15KW | 15KW | 120rpm | 1120N.m | 1.10 |
| S87Y15KW | 15KW | 134rpm | 1000N.m | 1.25 |
| S87Y15KW | 15KW | 162rpm | 830N.m | 1.35 |
| S87Y15KW | 15KW | 186rpm | 725N.m | 1.40 |
SA88減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S88減速機
關鍵詞:GSA系列減速機配電機一體式_伺服電機連接減速機_私服電機配減速機_SA系列減速機_私服電機減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列蝸輪蝸桿減速機型號：SA38減速機,SA48減速機,SA58減速機,SA68減速機,SA78減速機,SA88減速機,SA98齒輪減速馬達
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: SA88減速電機 SA87蝸輪減速機 SA87減速機功率 SA87減速機基座尺寸 SA87減速機模型 SA87減速機型號參數
