RF78減速電機詳細信息
RF78減速電機
訂購熱線：13360667204
RF78減速電機功率計算公式：齒輪減速馬達
電軌車參數：鏈輪直徑170，帶動1.2噸，每分鐘運行21米
21米÷（0.17鏈輪直徑×3.14）=39.34轉每分鐘
1.2噸換算成N=12000N
12000×0.08鏈輪半徑×0.3橡膠輪水泥路的摩擦系數=288N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍288×2=576N.m
電機轉數1400÷輸出轉數39.34=35.59比
576N.m輸出扭矩÷35.59比=16.18N.m電機扭矩
16.18N.m電機扭矩?fù)Q算成功率2.57KW左右
對應的RF78減速機型號參數：
型號：RF78-BEJ3KW
減速比：36.83
輸出轉數：40轉每分鐘
輸出扭矩：725N.m
安全系數：1.15
RF78減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機

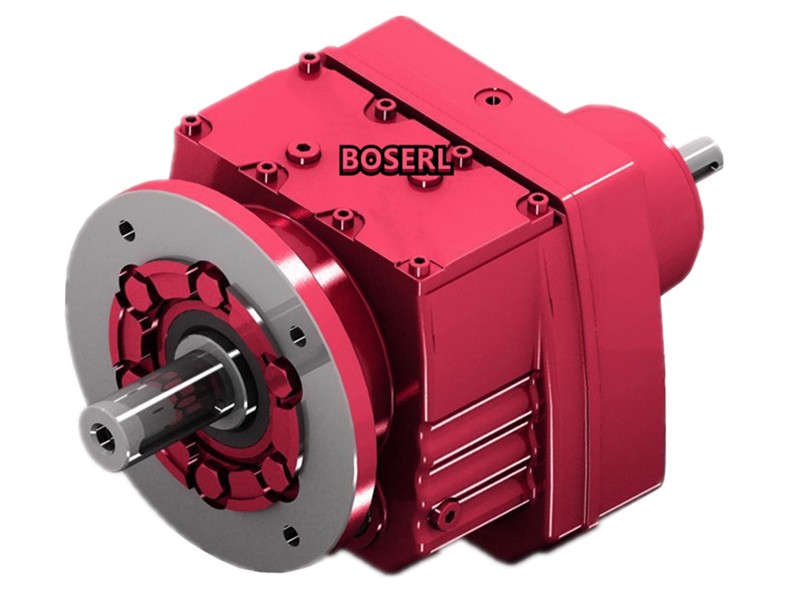

RF78斜齒輪硬齒面減速機型號：

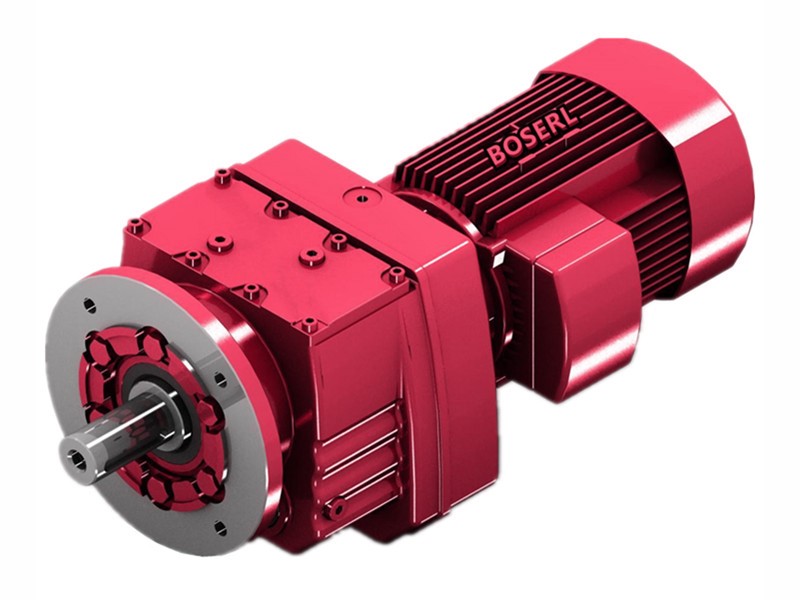

RF78減速電機型號參數：同軸斜齒輪減速電機
RF78減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y0.18KW | 195.24 | 0.18KW | 42kg | 12900N |
| RF78-Y0.18KW | 166.59 | 0.18KW | 42kg | 13000N |
| RF78-Y0.18KW | 145.67 | 0.18KW | 42kg | 13000N |
| RF78-Y0.18KW | 138.39 | 0.18KW | 42kg | 13000N |
RF78減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y0.25KW | 195.24 | 0.25KW | 46kg | 12600N |
| RF78-Y0.25KW | 166.59 | 0.25KW | 46kg | 12800N |
| RF78-Y0.25KW | 145.67 | 0.25KW | 46kg | 12900N |
| RF78-Y0.25KW | 138.39 | 0.25KW | 46kg | 12900N |
| RF78-Y0.25KW | 121.42 | 0.25KW | 46kg | 13000N |
RF78減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y0.37KW | 195.24 | 0.37KW | 46.5kg | 12100N |
| RF78-Y0.37KW | 166.59 | 0.37KW | 46.5kg | 12400N |
| RF78-Y0.37KW | 145.67 | 0.37KW | 46.5kg | 12600N |
| RF78-Y0.37KW | 138.39 | 0.37KW | 46.5kg | 12600N |
| RF78-Y0.37KW | 121.42 | 0.37KW | 46.5kg | 12800N |
| RF78-Y0.37KW | 102.99 | 0.37KW | 46.5kg | 12900N |
| RF78-Y0.37KW | 92.97 | 0.37KW | 46.5kg | 12900N |
RF78減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y0.55KW | 166.59 | 0.55KW | 51kg | 11400N |
| RF78-Y0.55KW | 145.67 | 0.55KW | 51kg | 11800N |
| RF78-Y0.55KW | 138.39 | 0.55KW | 51kg | 12000N |
| RF78-Y0.55KW | 121.42 | 0.55KW | 51kg | 12200N |
| RF78-Y0.55KW | 102.99 | 0.55KW | 51kg | 12500N |
| RF78-Y0.55KW | 92.97 | 0.55KW | 51kg | 12600N |
| RF78-Y0.55KW | 81.8 | 0.55KW | 51kg | 12800N |
| RF78-Y0.55KW | 77.24 | 0.55KW | 51kg | 12800N |
| RF78-Y0.55KW | 65.77 | 0.55KW | 51kg | 12900N |
RF78減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y0.75KW | 166.59 | 0.75KW | 52kg | 9810N |
| RF78-Y0.75KW | 145.67 | 0.75KW | 52kg | 10700N |
| RF78-Y0.75KW | 138.39 | 0.75KW | 52kg | 11000N |
| RF78-Y0.75KW | 121.42 | 0.75KW | 52kg | 11500N |
| RF78-Y0.75KW | 102.99 | 0.75KW | 52kg | 12000N |
| RF78-Y0.75KW | 92.97 | 0.75KW | 52kg | 12200N |
| RF78-Y0.75KW | 81.8 | 0.75KW | 52kg | 12500N |
| RF78-Y0.75KW | 77.24 | 0.75KW | 52kg | 12500N |
| RF78-Y0.75KW | 65.77 | 0.75KW | 52kg | 12700N |
| RF78-Y0.75KW | 57.68 | 0.75KW | 52kg | 12800N |
| RF78-Y0.75KW | 52.07 | 0.75KW | 52kg | 12900N |
| RF78-Y0.75KW | 45.81 | 0.75KW | 52kg | 13000N |
| RF78-Y0.75KW | 43.26 | 0.75KW | 52kg | 13000N |
RF78減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y1.1KW | 121.42 | 1.1KW | 56kg | 9130N |
| RF78-Y1.1KW | 102.99 | 1.1KW | 56kg | 10400N |
| RF78-Y1.1KW | 92.97 | 1.1KW | 56kg | 11000N |
| RF78-Y1.1KW | 81.8 | 1.1KW | 56kg | 11500N |
| RF78-Y1.1KW | 77.24 | 1.1KW | 56kg | 11700N |
| RF78-Y1.1KW | 65.77 | 1.1KW | 56kg | 12100N |
| RF78-Y1.1KW | 57.68 | 1.1KW | 56kg | 12400N |
| RF78-Y1.1KW | 52.07 | 1.1KW | 56kg | 12500N |
| RF78-Y1.1KW | 45.81 | 1.1KW | 56kg | 12700N |
| RF78-Y1.1KW | 43.26 | 1.1KW | 56kg | 12700N |
| RF78-Y1.1KW | 36.83 | 1.1KW | 56kg | 12900N |
| RF78-Y1.1KW | 33.47 | 1.1KW | 56kg | 12900N |
RF78減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y1.5KW | 92.97 | 1.5KW | 59kg | 8750N |
| RF78-Y1.5KW | 81.80 | 1.5KW | 59kg | 9930N |
| RF78-Y1.5KW | 77.24 | 1.5KW | 59kg | 10300N |
| RF78-Y1.5KW | 65.77 | 1.5KW | 59kg | 11200N |
| RF78-Y1.5KW | 57.68 | 1.5KW | 59kg | 11700N |
| RF78-Y1.5KW | 52.07 | 1.5KW | 59kg | 12000N |
| RF78-Y1.5KW | 45.81 | 1.5KW | 59kg | 12300N |
| RF78-Y1.5KW | 43.26 | 1.5KW | 59kg | 12400N |
| RF78-Y1.5KW | 36.83 | 1.5KW | 59kg | 12600N |
| RF78-Y1.5KW | 33.47 | 1.5KW | 59kg | 12700N |
| RF78-Y1.5KW | 29.00 | 1.5KW | 59kg | 12500N |
| RF78-Y1.5KW | 25.23 | 1.5KW | 59kg | 12000N |
| RF78-Y1.5KW | 23.37 | 1.5KW | 59kg | 11700N |
| RF78-Y1.5KW | 21.43 | 1.5KW | 59kg | 11400N |
| RF78-Y1.5KW | 18.80 | 1.5KW | 59kg | 11000N |
RF78減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y2.2KW | 65.77 | 2.2KW | 68kg | 6520N |
| RF78-Y2.2KW | 57.68 | 2.2KW | 68kg | 9630N |
| RF78-Y2.2KW | 52.07 | 2.2KW | 68kg | 10400N |
| RF78-Y2.2KW | 45.81 | 2.2KW | 68kg | 11100N |
| RF78-Y2.2KW | 43.26 | 2.2KW | 68kg | 11300N |
| RF78-Y2.2KW | 36.83 | 2.2KW | 68kg | 11900N |
| RF78-Y2.2KW | 33.47 | 2.2KW | 68kg | 12100N |
| RF78-Y2.2KW | 29.00 | 2.2KW | 68kg | 12100N |
| RF78-Y2.2KW | 25.23 | 2.2KW | 68kg | 11600N |
| RF78-Y2.2KW | 23.37 | 2.2KW | 68kg | 11400N |
| RF78-Y2.2KW | 21.43 | 2.2KW | 68kg | 11100N |
| RF78-Y2.2KW | 18.80 | 2.2KW | 68kg | 10700N |
| RF78-Y2.2KW | 17.82 | 2.2KW | 68kg | 10600N |
| RF78-Y2.2KW | 15.60 | 2.2KW | 68kg | 10200N |
| RF78-Y2.2KW | 14.05 | 2.2KW | 68kg | 9880N |
RF78減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y3KW | 45.81 | 3KW | 71kg | 9090N |
| RF78-Y3KW | 43.26 | 3KW | 71kg | 9620N |
| RF78-Y3KW | 36.83 | 3KW | 71kg | 10700N |
| RF78-Y3KW | 33.47 | 3KW | 71kg | 11200N |
| RF78-Y3KW | 29.00 | 3KW | 71kg | 11600N |
| RF78-Y3KW | 25.23 | 3KW | 71kg | 11200N |
| RF78-Y3KW | 23.37 | 3KW | 71kg | 11000N |
| RF78-Y3KW | 21.43 | 3KW | 71kg | 10700N |
| RF78-Y3KW | 18.80 | 3KW | 71kg | 10400N |
| RF78-Y3KW | 17.82 | 3KW | 71kg | 10200N |
| RF78-Y3KW | 15.60 | 3KW | 71kg | 9880N |
| RF78-Y3KW | 14.05 | 3KW | 71kg | 9600N |
| RF78-Y3KW | 12.33 | 3KW | 71kg | 9250N |
| RF78-Y3KW | 10.88 | 3KW | 71kg | 8930N |
| RF78-Y3KW | 9.64 | 3KW | 71kg | 8630N |
| RF78-Y3KW | 8.59 | 3KW | 71kg | 8400N |
| RF78-Y3KW | 7.74 | 3KW | 71kg | 8150N |
| RF78-Y3KW | 6.79 | 3KW | 71kg | 7830N |
RF78減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y4KW | 36.83 | 4KW | 82kg | 7040N |
| RF78-Y4KW | 33.47 | 4KW | 82kg | 9370N |
| RF78-Y4KW | 29.00 | 4KW | 82kg | 10500N |
| RF78-Y4KW | 25.23 | 4KW | 82kg | 10700N |
| RF78-Y4KW | 23.37 | 4KW | 82kg | 10500N |
| RF78-Y4KW | 21.43 | 4KW | 82kg | 10300N |
| RF78-Y4KW | 18.80 | 4KW | 82kg | 10000N |
| RF78-Y4KW | 17.82 | 4KW | 82kg | 9880N |
| RF78-Y4KW | 15.60 | 4KW | 82kg | 9560N |
| RF78-Y4KW | 14.05 | 4KW | 82kg | 9320N |
| RF78-Y4KW | 12.33 | 4KW | 82kg | 9010N |
| RF78-Y4KW | 10.88 | 4KW | 82kg | 8710N |
| RF78-Y4KW | 9.64 | 4KW | 82kg | 8430N |
| RF78-Y4KW | 8.59 | 4KW | 82kg | 8250N |
| RF78-Y4KW | 7.74 | 4KW | 82kg | 8010N |
| RF78-Y4KW | 6.79 | 4KW | 82kg | 7710N |
| RF78-Y4KW | 5.99 | 4KW | 82kg | 7430N |
| RF78-Y4KW | 5.31 | 4KW | 82kg | 7160N |
RF78減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y5.5KW | 18.80 | 5.5KW | 96kg | 9300N |
| RF78-Y5.5KW | 17.82 | 5.5KW | 96kg | 9370N |
| RF78-Y5.5KW | 15.60 | 5.5KW | 96kg | 9120N |
| RF78-Y5.5KW | 14.05 | 5.5KW | 96kg | 8920N |
| RF78-Y5.5KW | 12.33 | 5.5KW | 96kg | 8650N |
| RF78-Y5.5KW | 10.88 | 5.5KW | 96kg | 8400N |
| RF78-Y5.5KW | 9.64 | 5.5KW | 96kg | 8160N |
| RF78-Y5.5KW | 8.59 | 5.5KW | 96kg | 8040N |
| RF78-Y5.5KW | 7.74 | 5.5KW | 96kg | 7820N |
| RF78-Y5.5KW | 6.79 | 5.5KW | 96kg | 7540N |
| RF78-Y5.5KW | 5.99 | 5.5KW | 96kg | 7280N |
| RF78-Y5.5KW | 5.31 | 5.5KW | 96kg | 7040N |
RF78減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y7.5KW | 18.80 | 7.5KW | 109kg | 5530N |
| RF78-Y7.5KW | 17.82 | 7.5KW | 109kg | 5920N |
| RF78-Y7.5KW | 15.60 | 7.5KW | 109kg | 6770N |
| RF78-Y7.5KW | 14.05 | 7.5KW | 109kg | 7310N |
| RF78-Y7.5KW | 12.33 | 7.5KW | 109kg | 7850N |
| RF78-Y7.5KW | 10.88 | 7.5KW | 109kg | 7960N |
| RF78-Y7.5KW | 9.64 | 7.5KW | 109kg | 7770N |
| RF78-Y7.5KW | 8.59 | 7.5KW | 109kg | 7690N |
| RF78-Y7.5KW | 7.74 | 7.5KW | 109kg | 7540N |
| RF78-Y7.5KW | 6.79 | 7.5KW | 109kg | 7290N |
| RF78-Y7.5KW | 5.99 | 7.5KW | 109kg | 7060N |
| RF78-Y7.5KW | 5.31 | 7.5KW | 109kg | 6840N |
RF78減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF78-Y11KW | 10.88 | 11KW | 151kg | 4410N |
| RF78-Y11KW | 9.64 | 11KW | 151kg | 5130N |
| RF78-Y11KW | 7.74 | 11KW | 151kg | 4750N |
| RF78-Y11KW | 6.79 | 11KW | 151kg | 5350N |
| RF78-Y11KW | 5.99 | 11KW | 151kg | 5800N |
| RF78-Y11KW | 5.31 | 11KW | 151kg | 6150N |
RF78減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R78減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
