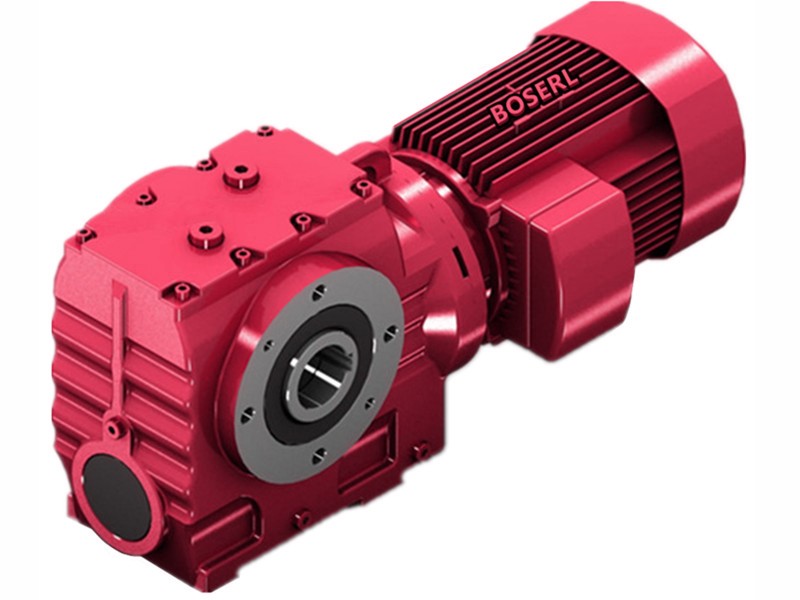

SA38減速電機詳細信息
SA38減速電機
訂購熱線：13360667204
SA38減速電機功率計算公式：齒輪減速馬達
翻轉機參數：滾輪直徑90，翻轉600公斤，一分鐘翻轉95轉
600公斤換算成扭矩=588N.m
588N.m×0.045滾筒半徑=26.46N.m
電機轉數1400÷輸出轉數95=14.74比
26.46N.m輸出扭矩÷14.74比=1.8N.m電機扭矩
1.8N.m電機扭矩?fù)Q算成功率0.29KW以上
對應的SA38減速機型號參數：
型號：SA38-BVP0.37KW
減速比：15.53
輸出轉數：89轉每分鐘
輸出扭矩：35N.m
安全系數：1.45
SA38減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機連接減速機
SA38蝸輪減速機型號：
SA38減速電機型號參數：自鎖減速機
SA38減速機配0.12KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y0.12KW | 0.12KW | 8.80rpm | 74N.m | 1.25 |
| S37Y0.12KW | 0.12KW | 9.60rpm | 68N.m | 1.35 |
| S37Y0.12KW | 0.12KW | 11.0rpm | 60N.m | 1.55 |
| S37Y0.12KW | 0.12KW | 13.0rpm | 52N.m | 1.70 |
| S37Y0.12KW | 0.12KW | 14.0rpm | 49N.m | 1.75 |
| S37Y0.12KW | 0.12KW | 16.0rpm | 44N.m | 1.95 |
| S37Y0.12KW | 0.12KW | 17.0rpm | 41N.m | 2.10 |
| S37Y0.12KW | 0.12KW | 19.0rpm | 37N.m | 2.30 |
| S37Y0.12KW | 0.12KW | 22.0rpm | 35N.m | 2.30 |
| S37Y0.12KW | 0.12KW | 25.0rpm | 33N.m | 2.50 |
| S37Y0.12KW | 0.12KW | 27.0rpm | 33N.m | 2.50 |
| S37Y0.12KW | 0.12KW | 32.0rpm | 28N.m | 2.90 |
| S37Y0.12KW | 0.12KW | 37.0rpm | 24N.m | 3.20 |
| S37Y0.12KW | 0.12KW | 39.0rpm | 23N.m | 3.40 |
| S37Y0.12KW | 0.12KW | 45.0rpm | 20N.m | 3.70 |
| S37Y0.12KW | 0.12KW | 48.0rpm | 19N.m | 3.90 |
| S37Y0.12KW | 0.12KW | 54.0rpm | 17N.m | 4.40 |
| S37Y0.12KW | 0.12KW | 61.0rpm | 15N.m | 4.80 |
| S37Y0.12KW | 0.12KW | 69.0rpm | 14N.m | 3.60 |
| S37Y0.12KW | 0.12KW | 76.0rpm | 13N.m | 3.90 |
| S37Y0.12KW | 0.12KW | 89.0rpm | 11N.m | 4.40 |
SA38減速機配0.18KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y0.18KW | 0.18KW | 8.40rpm | 115N.m | 0.80 |
| S37Y0.18KW | 0.18KW | 9.10rpm | 107N.m | 0.85 |
| S37Y0.18KW | 0.18KW | 11.0rpm | 93N.m | 1.00 |
| S37Y0.18KW | 0.18KW | 12.0rpm | 82N.m | 1.10 |
| S37Y0.18KW | 0.18KW | 13.0rpm | 77N.m | 1.15 |
| S37Y0.18KW | 0.18KW | 15.0rpm | 68N.m | 1.25 |
| S37Y0.18KW | 0.18KW | 16.0rpm | 64N.m | 1.30 |
| S37Y0.18KW | 0.18KW | 18.0rpm | 58N.m | 1.45 |
| S37Y0.18KW | 0.18KW | 21.0rpm | 55N.m | 1.45 |
| S37Y0.18KW | 0.18KW | 24.0rpm | 52N.m | 1.60 |
| S37Y0.18KW | 0.18KW | 26.0rpm | 51N.m | 1.60 |
| S37Y0.18KW | 0.18KW | 30.0rpm | 44N.m | 1.85 |
| S37Y0.18KW | 0.18KW | 35.0rpm | 38N.m | 2.10 |
| S37Y0.18KW | 0.18KW | 38.0rpm | 36N.m | 2.20 |
| S37Y0.18KW | 0.18KW | 43.0rpm | 32N.m | 2.40 |
| S37Y0.18KW | 0.18KW | 46.0rpm | 30N.m | 2.50 |
| S37Y0.18KW | 0.18KW | 52.0rpm | 26N.m | 2.80 |
| S37Y0.18KW | 0.18KW | 59.0rpm | 24N.m | 3.10 |
| S37Y0.18KW | 0.18KW | 66.0rpm | 22N.m | 2.30 |
| S37Y0.18KW | 0.18KW | 72.0rpm | 21N.m | 2.50 |
| S37Y0.18KW | 0.18KW | 85.0rpm | 18N.m | 2.80 |
| S37Y0.18KW | 0.18KW | 99.0rpm | 15N.m | 3.20 |
| S37Y0.18KW | 0.18KW | 106rpm | 14N.m | 3.40 |
| S37Y0.18KW | 0.18KW | 121rpm | 13N.m | 3.80 |
| S37Y0.18KW | 0.18KW | 129rpm | 12N.m | 4.00 |
SA38減速機配0.25KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y0.25KW | 0.25KW | 13.0rpm | 108N.m | 0.80 |
| S37Y0.25KW | 0.25KW | 15.0rpm | 96N.m | 0.90 |
| S37Y0.25KW | 0.25KW | 16.0rpm | 91N.m | 0.95 |
| S37Y0.25KW | 0.25KW | 18.0rpm | 81N.m | 1.05 |
| S37Y0.25KW | 0.25KW | 21.0rpm | 73N.m | 1.10 |
| S37Y0.25KW | 0.25KW | 23.0rpm | 78N.m | 1.05 |
| S37Y0.25KW | 0.25KW | 25.0rpm | 72N.m | 1.15 |
| S37Y0.25KW | 0.25KW | 30.0rpm | 62N.m | 1.30 |
| S37Y0.25KW | 0.25KW | 35.0rpm | 54N.m | 1.45 |
| S37Y0.25KW | 0.25KW | 37.0rpm | 51N.m | 1.55 |
| S37Y0.25KW | 0.25KW | 42.0rpm | 45N.m | 1.70 |
| S37Y0.25KW | 0.25KW | 45.0rpm | 42N.m | 1.80 |
| S37Y0.25KW | 0.25KW | 51.0rpm | 37N.m | 2.00 |
| S37Y0.25KW | 0.25KW | 58.0rpm | 33N.m | 2.20 |
| S37Y0.25KW | 0.25KW | 65.0rpm | 32N.m | 1.65 |
| S37Y0.25KW | 0.25KW | 71.0rpm | 29N.m | 1.80 |
| S37Y0.25KW | 0.25KW | 84.0rpm | 25N.m | 2.00 |
| S37Y0.25KW | 0.25KW | 97.0rpm | 22N.m | 2.30 |
| S37Y0.25KW | 0.25KW | 104rpm | 20N.m | 2.40 |
| S37Y0.25KW | 0.25KW | 119rpm | 18N.m | 2.70 |
| S37Y0.25KW | 0.25KW | 127rpm | 17N.m | 2.80 |
| S37Y0.25KW | 0.25KW | 144rpm | 15N.m | 3.10 |
| S37Y0.25KW | 0.25KW | 162rpm | 13N.m | 3.40 |
| S37Y0.25KW | 0.25KW | 191rpm | 11N.m | 3.80 |
SA38減速機配0.37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y0.37KW | 0.37KW | 22.0rpm | 103N.m | 0.80 |
| S37Y0.37KW | 0.37KW | 27.0rpm | 101N.m | 0.80 |
| S37Y0.37KW | 0.37KW | 32.0rpm | 87N.m | 0.95 |
| S37Y0.37KW | 0.37KW | 37.0rpm | 76N.m | 1.05 |
| S37Y0.37KW | 0.37KW | 39.0rpm | 71N.m | 1.10 |
| S37Y0.37KW | 0.37KW | 45.0rpm | 62N.m | 1.20 |
| S37Y0.37KW | 0.37KW | 48.0rpm | 59N.m | 1.30 |
| S37Y0.37KW | 0.37KW | 54.0rpm | 52N.m | 1.40 |
| S37Y0.37KW | 0.37KW | 61.0rpm | 47N.m | 1.55 |
| S37Y0.37KW | 0.37KW | 69.0rpm | 44N.m | 1.20 |
| S37Y0.37KW | 0.37KW | 76.0rpm | 41N.m | 1.30 |
| S37Y0.37KW | 0.37KW | 89.0rpm | 35N.m | 1.45 |
| S37Y0.37KW | 0.37KW | 103rpm | 30N.m | 1.60 |
| S37Y0.37KW | 0.37KW | 111rpm | 28N.m | 1.70 |
| S37Y0.37KW | 0.37KW | 126rpm | 25N.m | 1.95 |
| S37Y0.37KW | 0.37KW | 135rpm | 23N.m | 2.00 |
| S37Y0.37KW | 0.37KW | 153rpm | 21N.m | 2.20 |
| S37Y0.37KW | 0.37KW | 172rpm | 18N.m | 2.40 |
| S37Y0.37KW | 0.37KW | 203rpm | 16N.m | 2.70 |
SA38減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y0.55KW | 0.55KW | 45.0rpm | 93N.m | 0.80 |
| S37Y0.55KW | 0.55KW | 48.0rpm | 87N.m | 0.85 |
| S37Y0.55KW | 0.55KW | 54.0rpm | 78N.m | 0.95 |
| S37Y0.55KW | 0.55KW | 61.0rpm | 69N.m | 1.05 |
| S37Y0.55KW | 0.55KW | 89.0rpm | 52N.m | 0.95 |
| S37Y0.55KW | 0.55KW | 103rpm | 45N.m | 1.10 |
| S37Y0.55KW | 0.55KW | 72.0rpm | 60N.m | 1.20 |
| S37Y0.55KW | 0.55KW | 111rpm | 42N.m | 1.15 |
| S37Y0.55KW | 0.55KW | 126rpm | 37N.m | 1.30 |
| S37Y0.55KW | 0.55KW | 135rpm | 35N.m | 1.35 |
| S37Y0.55KW | 0.55KW | 153rpm | 31N.m | 1.50 |
| S37Y0.55KW | 0.55KW | 172rpm | 27N.m | 1.65 |
| S37Y0.55KW | 0.55KW | 203rpm | 23N.m | 1.85 |
SA38減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y0.75KW | 0.75KW | 75.0rpm | 78N.m | 0.90 |
| S37Y0.75KW | 0.75KW | 115rpm | 55N.m | 0.85 |
| S37Y0.75KW | 0.75KW | 132rpm | 48N.m | 1.00 |
| S37Y0.75KW | 0.75KW | 140rpm | 46N.m | 1.05 |
| S37Y0.75KW | 0.75KW | 159rpm | 40N.m | 1.15 |
| S37Y0.75KW | 0.75KW | 179rpm | 36N.m | 1.25 |
| S37Y0.75KW | 0.75KW | 211rpm | 31N.m | 1.40 |
SA38減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y1.1KW | 1.1KW | 178rpm | 53N.m | 0.85 |
| S37Y1.1KW | 1.1KW | 209rpm | 45N.m | 0.95 |
| S37Y1.1KW | 1.1KW | 214rpm | 44N.m | 0.95 |
| S37Y1.1KW | 1.1KW | 230rpm | 41N.m | 0.95 |
| S37Y1.1KW | 1.1KW | 263rpm | 36N.m | 1.10 |
| S37Y1.1KW | 1.1KW | 281rpm | 34N.m | 1.10 |
| S37Y1.1KW | 1.1KW | 318rpm | 30N.m | 1.20 |
| S37Y1.1KW | 1.1KW | 359rpm | 27N.m | 1.30 |
| S37Y1.1KW | 1.1KW | 422rpm | 23N.m | 1.25 |
SA38減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S37Y1.5KW | 1.5KW | 314rpm | 42N.m | 0.85 |
| S37Y1.5KW | 1.5KW | 354rpm | 37N.m | 0.95 |
| S37Y1.5KW | 1.5KW | 416rpm | 32N.m | 0.90 |
SA38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S38減速機
關鍵詞:GSA系列減速機配電機一體式_伺服電機連接減速機_私服電機配減速機_SA系列減速機_私服電機減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列蝸輪蝸桿減速機型號：SA38減速機,SA48減速機,SA58減速機,SA68減速機,SA78減速機,SA88減速機,SA98齒輪減速馬達
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
