R148R78減速機詳細信息
R148R78減速機
R148R78減速器電機功率：R148R78Y0.12KW減速器,R148R78Y0.18KW減速器,R148R78Y0.25KW減速器,R148R78Y0.37KW減速器,R148R78Y0.55KW減速器,R148R78Y0.75KW減速器,R148R78Y1.1KW減速器,R148R78Y1.5KW減速器,R148R78Y2.2KW減速器,R148R78Y3KW減速器,R148R78Y4KW減速器（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
R147FRF77減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y0.12KW | 21342 | 0.12KW | 0.06r/min | 13300N.m | 441.5kg | 62000N | 1.00 |
| R147FRF77-Y0.12KW | 18210 | 0.12KW | 0.08r/min | 11300N.m | 441.5kg | 65700N | 0.15 |
| R147FRF77-Y0.12KW | 15923 | 0.12KW | 0.09r/min | 9920N.m | 441.5kg | 67900N | 1.30 |
| R147FRF77-Y0.12KW | 14075 | 0.12KW | 0.10r/min | 8770N.m | 441.5kg | 69400N | 1.50 |
| R147FRF77-Y0.12KW | 12344 | 0.12KW | 0.11r/min | 7640N.m | 441.5kg | 70700N | 1.70 |
| R147FRF77-Y0.12KW | 11143 | 0.12KW | 0.12r/min | 6730N.m | 441.5kg | 71600N | 1.95 |
| R147FRF77-Y0.12KW | 9743 | 0.12KW | 0.14r/min | 6030N.m | 441.5kg | 72200N | 2.20 |
| R147FRF77-Y0.12KW | 8443 | 0.12KW | 0.16r/min | 4830N.m | 441.5kg | 73100N | 2.70 |
| R147FRF77-Y0.12KW | 7307 | 0.12KW | 0.19r/min | 4180N.m | 441.5kg | 73400N | 3.10 |
| R147FRF77-Y0.12KW | 6447 | 0.12KW | 0.21r/min | 3690N.m | 441.5kg | 73700N | 3.50 |
| R147FRF77-Y0.12KW | 5568 | 0.12KW | 0.25r/min | 3180N.m | 441.5kg | 73900N | 4.10 |
R147FRF77減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y0.18KW | 14075 | 0.18KW | 0.09r/min | 14900N.m | 442kg | 50900N | 0.85 |
| R147FRF77-Y0.18KW | 12344 | 0.18KW | 0.11r/min | 13000N.m | 442kg | 62500N | 1.00 |
| R147FRF77-Y0.18KW | 11143 | 0.18KW | 0.12r/min | 11600N.m | 442kg | 65200N | 1.10 |
| R147FRF77-Y0.18KW | 9743 | 0.18KW | 0.14r/min | 10300N.m | 442kg | 67300N | 1.25 |
| R147FRF77-Y0.18KW | 8443 | 0.18KW | 0.16r/min | 8550N.m | 442kg | 69700N | 1.50 |
| R147FRF77-Y0.18KW | 7307 | 0.18KW | 0.18r/min | 7400N.m | 442kg | 70900N | 1.75 |
| R147FRF77-Y0.18KW | 6447 | 0.18KW | 0.20r/min | 6530N.m | 442kg | 71800N | 2.00 |
| R147FRF77-Y0.18KW | 5568 | 0.18KW | 0.24r/min | 5640N.m | 442kg | 72500N | 2.30 |
| R147FRF77-Y0.18KW | 4926 | 0.18KW | 0.27r/min | 5140N.m | 442kg | 72800N | 2.50 |
| R147FRF77-Y0.18KW | 4325 | 0.18KW | 0.31r/min | 4420N.m | 442kg | 73300N | 2.90 |
| R147FRF77-Y0.18KW | 3754 | 0.18KW | 0.35r/min | 3920N.m | 442kg | 73600N | 3.30 |
| R147FRF77-Y0.18KW | 3302 | 0.18KW | 0.40r/min | 3370N.m | 442kg | 73800N | 3.80 |
R147FRF77減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y0.25KW | 9743 | 0.25KW | 0.13r/min | 15100N.m | 446kg | 48200N | 0.85 |
| R147FRF77-Y0.25KW | 8443 | 0.25KW | 0.15r/min | 12700N.m | 446kg | 63100N | 1.00 |
| R147FRF77-Y0.25KW | 7307 | 0.25KW | 0.18r/min | 11000N.m | 446kg | 66200N | 1.20 |
| R147FRF77-Y0.25KW | 6447 | 0.25KW | 0.20r/min | 9740N.m | 446kg | 68100N | 1.35 |
| R147FRF77-Y0.25KW | 5568 | 0.25KW | 0.23r/min | 8410N.m | 446kg | 69800N | 1.55 |
| R147FRF77-Y0.25KW | 4926 | 0.25KW | 0.26r/min | 7590N.m | 446kg | 70700N | 1.70 |
| R147FRF77-Y0.25KW | 4325 | 0.25KW | 0.30r/min | 6570N.m | 446kg | 71700N | 2.00 |
| R147FRF77-Y0.25KW | 3754 | 0.25KW | 0.35r/min | 5790N.m | 446kg | 72400N | 2.20 |
| R147FRF77-Y0.25KW | 3302 | 0.25KW | 0.39r/min | 5020N.m | 446kg | 72900N | 2.60 |
| R147FRF77-Y0.25KW | 2898 | 0.25KW | 0.45r/min | 4370N.m | 446kg | 73300N | 3.00 |
R147FRF77減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y0.37KW | 7307 | 0.37KW | 0.19r/min | 15900N.m | 446.5kg | 37500N | 0.80 |
| R147FRF77-Y0.37KW | 6447 | 0.37KW | 0.21r/min | 14000N.m | 446.5kg | 60400N | 0.90 |
| R147FRF77-Y0.37KW | 5568 | 0.37KW | 0.25r/min | 12100N.m | 446.5kg | 64300N | 1.05 |
| R147FRF77-Y0.37KW | 4926 | 0.37KW | 0.28r/min | 10900N.m | 446.5kg | 66400N | 1.20 |
| R147FRF77-Y0.37KW | 4325 | 0.37KW | 0.32r/min | 9470N.m | 446.5kg | 68500N | 1.35 |
| R147FRF77-Y0.37KW | 3754 | 0.37KW | 0.37r/min | 8310N.m | 446.5kg | 70000N | 1.55 |
| R147FRF77-Y0.37KW | 3302 | 0.37KW | 0.42r/min | 7230N.m | 446.5kg | 71100N | 1.80 |
| R147FRF77-Y0.37KW | 2898 | 0.37KW | 0.48r/min | 6320N.m | 446.5kg | 71900N | 2.10 |
R147FRF77減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y0.55KW | 4926 | 0.55KW | 0.28r/min | 16600N.m | 451kg | 26700N | 0.80 |
| R147FRF77-Y0.55KW | 4325 | 0.55KW | 0.32r/min | 14400N.m | 451kg | 56500N | 0.90 |
| R147FRF77-Y0.55KW | 3754 | 0.55KW | 0.37r/min | 12600N.m | 451kg | 63300N | 1.05 |
| R147FRF77-Y0.55KW | 3302 | 0.55KW | 0.42r/min | 11000N.m | 451kg | 66200N | 1.20 |
| R147FRF77-Y0.55KW | 2898 | 0.55KW | 0.48r/min | 9670N.m | 451kg | 68200N | 1.35 |
| R147FRF77-Y0.55KW | 2555 | 0.55KW | 0.54r/min | 8750N.m | 451kg | 69400N | 1.50 |
| R147FRF77-Y0.55KW | 2211 | 0.55KW | 0.62r/min | 7580N.m | 451kg | 70800N | 1.70 |
| R147FRF77-Y0.55KW | 1951 | 0.55KW | 0.71r/min | 6680N.m | 451kg | 71600N | 1.95 |
| R147FRF77-Y0.55KW | 1705 | 0.55KW | 0.81r/min | 5720N.m | 451kg | 72400N | 2.30 |
| R147FRF77-Y0.55KW | 1536 | 0.55KW | 0.90r/min | 5120N.m | 451kg | 72900N | 2.50 |
| R147FRF77-Y0.55KW | 1329 | 0.55KW | 1.00r/min | 4430N.m | 451kg | 73300N | 2.90 |
| R147FRF77-Y0.55KW | 1166 | 0.55KW | 1.20r/min | 3850N.m | 451kg | 73600N | 3.40 |
R147FRF77減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y0.75KW | 3302 | 0.75KW | 0.43r/min | 14600N.m | 452kg | 54100N | 0.90 |
| R147FRF77-Y0.75KW | 2898 | 0.75KW | 0.50r/min | 12800N.m | 452kg | 62900N | 1.00 |
| R147FRF77-Y0.75KW | 2555 | 0.75KW | 0.56r/min | 11600N.m | 452kg | 65300N | 1.10 |
| R147FRF77-Y0.75KW | 2211 | 0.75KW | 0.65r/min | 10000N.m | 452kg | 67700N | 1.30 |
| R147FRF77-Y0.75KW | 1951 | 0.75KW | 0.74r/min | 8860N.m | 452kg | 69300N | 1.45 |
| R147FRF77-Y0.75KW | 1705 | 0.75KW | 0.84r/min | 7610N.m | 452kg | 70700N | 1.70 |
| R147FRF77-Y0.75KW | 1536 | 0.75KW | 0.93r/min | 6830N.m | 452kg | 71500N | 1.90 |
| R147FRF77-Y0.75KW | 1329 | 0.75KW | 1.10r/min | 5910N.m | 452kg | 72300N | 2.20 |
| R147FRF77-Y0.75KW | 1166 | 0.75KW | 1.20r/min | 5150N.m | 452kg | 72800N | 2.50 |
R147FRF77減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y1.1KW | 2211 | 1.1KW | 0.64r/min | 15000N.m | 456kg | 49600N | 0.85 |
| R147FRF77-Y1.1KW | 1951 | 1.1KW | 0.73r/min | 13200N.m | 456kg | 62100N | 1.00 |
| R147FRF77-Y1.1KW | 1705 | 1.1KW | 0.83r/min | 11400N.m | 456kg | 65500N | 1.15 |
| R147FRF77-Y1.1KW | 1536 | 1.1KW | 0.92r/min | 10300N.m | 456kg | 67300N | 1.25 |
| R147FRF77-Y1.1KW | 1329 | 1.1KW | 1.10r/min | 8920N.m | 456kg | 69200N | 1.45 |
| R147FRF77-Y1.1KW | 1166 | 1.1KW | 1.20r/min | 7790N.m | 456kg | 70500N | 1.65 |
| R147FRF77-Y1.1KW | 1029 | 1.1KW | 1.40r/min | 6850N.m | 456kg | 71500N | 1.90 |
| R147FRF77-Y1.1KW | 889 | 1.1KW | 1.60r/min | 5940N.m | 456kg | 72300N | 2.20 |
| R147FRF77-Y1.1KW | 784 | 1.1KW | 1.80r/min | 5220N.m | 456kg | 72800N | 2.50 |
| R147FRF77-Y1.1KW | 695 | 1.1KW | 2.00r/min | 4600N.m | 456kg | 73200N | 2.80 |
R147FRF77減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y1.5KW | 1705 | 1.5KW | 0.84r/min | 15600N.m | 459kg | 41200N | 0.85 |
| R147FRF77-Y1.5KW | 1536 | 1.5KW | 0.93r/min | 14100N.m | 459kg | 60300N | 0.90 |
| R147FRF77-Y1.5KW | 1329 | 1.5KW | 1.10r/min | 12200N.m | 459kg | 64200N | 1.05 |
| R147FRF77-Y1.5KW | 1166 | 1.5KW | 1.20r/min | 10600N.m | 459kg | 66800N | 1.20 |
| R147FRF77-Y1.5KW | 1029 | 1.5KW | 1.40r/min | 9380N.m | 459kg | 68600N | 1.40 |
| R147FRF77-Y1.5KW | 889 | 1.5KW | 1.60r/min | 8130N.m | 459kg | 70200N | 1.60 |
| R147FRF77-Y1.5KW | 784 | 1.5KW | 1.80r/min | 7150N.m | 459kg | 71200N | 1.80 |
| R147FRF77-Y1.5KW | 695 | 1.5KW | 2.10r/min | 6320N.m | 459kg | 71900N | 2.10 |
| R147FRF77-Y1.5KW | 619 | 1.5KW | 2.30r/min | 5690N.m | 459kg | 72400N | 2.30 |
| R147FRF77-Y1.5KW | 558 | 1.5KW | 2.60r/min | 5120N.m | 459kg | 72900N | 2.50 |
R147FRF77減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y2.2KW | 1166 | 2.2KW | 1.20r/min | 15800N.m | 468kg | 38600N | 0.80 |
| R147FRF77-Y2.2KW | 1029 | 2.2KW | 1.40r/min | 13900N.m | 468kg | 60600N | 0.95 |
| R147FRF77-Y2.2KW | 889 | 2.2KW | 1.60r/min | 12000N.m | 468kg | 64400N | 1.10 |
| R147FRF77-Y2.2KW | 784 | 2.2KW | 1.80r/min | 10600N.m | 468kg | 66800N | 1.20 |
| R147FRF77-Y2.2KW | 695 | 2.2KW | 2.00r/min | 9410N.m | 468kg | 68600N | 1.40 |
| R147FRF77-Y2.2KW | 619 | 2.2KW | 2.30r/min | 8450N.m | 468kg | 69800N | 1.55 |
| R147FRF77-Y2.2KW | 558 | 2.2KW | 2.60r/min | 7600N.m | 468kg | 70700N | 1.70 |
| R147FRF77-Y2.2KW | 489 | 2.2KW | 2.90r/min | 6650N.m | 468kg | 71600N | 1.95 |
R147FRF77減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y3KW | 889 | 3KW | 1.60r/min | 16200N.m | 471kg | 33100N | 0.80 |
| R147FRF77-Y3KW | 784 | 3KW | 1.90r/min | 14200N.m | 471kg | 58800N | 0.90 |
| R147FRF77-Y3KW | 695 | 3KW | 2.10r/min | 12600N.m | 471kg | 63300N | 1.05 |
| R147FRF77-Y3KW | 619 | 3KW | 2.40r/min | 11300N.m | 471kg | 65700N | 1.15 |
| R147FRF77-Y3KW | 558 | 3KW | 2.60r/min | 10200N.m | 471kg | 67500N | 1.25 |
R147FRF77減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R147FRF77-Y4KW | 619 | 4KW | 2.40r/min | 15100N.m | 482kg | 48900N | 0.85 |
| R147FRF77-Y4KW | 558 | 4KW | 2.60r/min | 13600N.m | 482kg | 61400N | 0.95 |
| R147FRF77-Y4KW | 489 | 4KW | 3.00r/min | 11900N.m | 482kg | 64700N | 1.10 |
| R147FRF77-Y4KW | 415 | 4KW | 3.50r/min | 10100N.m | 482kg | 67600N | 1.30 |
R148R78減速電機減速比：1:415減速電機,1:489減速電機,1:558齒輪減速馬達,1:619減速電機,1:695減速電機,1:784減速電機,1:889減速電機,1:1029減速電機,1:1166減速電機,1:1329減速電機,1:1536減速電機,1:1705減速電機,1:1951減速電機,1:2211減速電機,1:2555減速電機,1:2898減速電機,1:3302減速電機,1:3754減速電機,1:4325減速電機,1:4926減速電機,1:5568減速電機,1:6447減速電機,1:7307減速電機,1:8443減速電機,1:9743減速電機,1:11143減速電機,1:12344減速電機,1:14075減速電機,1:15923減速電機,1:18210減速電機,1:21342減速電機。

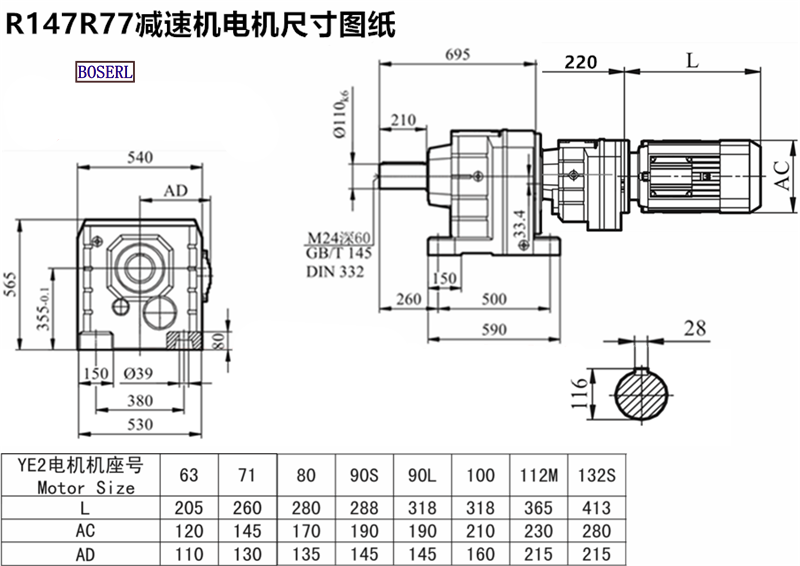

R148R78減速機電機安裝尺寸：輸出軸Φ110+鍵6（可定做），高565*寬530*長915（帶輸出軸）
R148R78減速箱輸出轉數：0.06rpm/min減速箱,0.08rpm/min減速箱,0.09rpm/min減速箱,0.1rpm/min減速箱,0.11rpm/min減速箱,0.12rpm/min減速箱,0.13rpm/min減速箱,0.14rpm/min減速箱,0.15rpm/min減速箱,0.16rpm/min減速箱,0.18rpm/min減速箱,0.19rpm/min減速箱,0.2rpm/min減速箱,0.21rpm/min減速箱,0.23rpm/min減速箱,0.24rpm/min減速箱,0.25rpm/min減速箱,0.26rpm/min減速箱,0.27rpm/min減速箱,0.28rpm/min減速箱,0.3rpm/min減速箱,0.31rpm/min減速箱,0.32rpm/min減速箱,0.35rpm/min減速箱,0.37rpm/min減速箱,0.39rpm/min減速箱,0.4rpm/min減速箱,0.42rpm/min減速箱,0.43rpm/min減速箱,0.45rpm/min減速箱,0.48rpm/min減速箱,0.5rpm/min減速箱,0.54rpm/min減速箱,0.56rpm/min減速箱,0.62rpm/min減速箱,0.64rpm/min減速箱,0.65rpm/min減速箱,0.71rpm/min減速箱,0.73rpm/min減速箱,0.74rpm/min減速箱,0.81rpm/min減速箱,0.83rpm/min減速箱,0.84rpm/min減速箱,0.9rpm/min減速箱,0.92rpm/min減速箱,0.93rpm/min減速箱,1rpm/min減速箱,1.1rpm/min減速箱,1.2rpm/min減速箱,1.4rpm/min減速箱,1.6rpm/min減速箱,1.8rpm/min減速箱,1.9rpm/min減速箱,2rpm/min減速箱,2.1rpm/min減速箱,2.3rpm/min減速箱,2.4rpm/min減速箱,2.6rpm/min減速箱,2.9rpm/min減速箱,3rpm/min減速箱,3.5rpm/min臥式減速機。
R148R78減速馬達電機輸出扭矩：3030Nm減速馬達,3180Nm減速馬達,3370Nm減速馬達,3690Nm減速馬達,3850Nm減速馬達,3920Nm減速馬達,4180Nm減速馬達,4370Nm減速馬達,4420Nm減速馬達,4430Nm減速馬達,4600Nm減速馬達,4830Nm減速馬達,5020Nm減速馬達,5120Nm減速馬達,5140Nm減速馬達,5150Nm減速馬達,5220Nm減速馬達,5640Nm減速馬達,5690Nm減速馬達,5720Nm減速馬達,5790Nm減速馬達,5910Nm減速馬達,5940Nm減速馬達,6320Nm減速馬達,6530Nm減速馬達,6570Nm減速馬達,6650Nm減速馬達,6680Nm減速馬達,6730Nm減速馬達,6830Nm減速馬達,6850Nm減速馬達,7150Nm減速馬達,7230Nm減速馬達,7400Nm減速馬達,7580Nm減速馬達,7590Nm減速馬達,7600Nm減速馬達,7610Nm減速馬達,7640Nm減速馬達,7790Nm減速馬達,8130Nm減速馬達,8310Nm減速馬達,8410Nm減速馬達,8450Nm減速馬達,8550Nm減速馬達,8750Nm減速馬達,8770Nm減速馬達,8860Nm減速馬達,8920Nm減速馬達,9380Nm減速馬達,9410Nm減速馬達,9470Nm減速馬達,9670Nm減速馬達,9740Nm減速馬達,9920Nm減速馬達,10000Nm減速馬達,10100Nm減速馬達,10200Nm減速馬達,10300Nm減速馬達,10600Nm減速馬達,10900Nm減速馬達,11000Nm減速馬達,11300Nm減速馬達,11400Nm減速馬達,11600Nm減速馬達,11900Nm減速馬達,12000Nm減速馬達,12100Nm減速馬達,12200Nm減速馬達,12600Nm減速馬達,12700Nm減速馬達,12800Nm減速馬達,13000Nm減速馬達,13200Nm減速馬達,13300Nm減速馬達,13600Nm減速馬達,13900Nm減速馬達,14000Nm減速馬達,14100Nm減速馬達,14200Nm減速馬達,14400Nm減速馬達,14600Nm減速馬達,14900Nm減速馬達,15000Nm減速馬達,15100Nm減速馬達,15600Nm減速馬達,15800Nm減速馬達,15900Nm減速馬達,16200Nm減速馬達,16600Nm減速馬達。

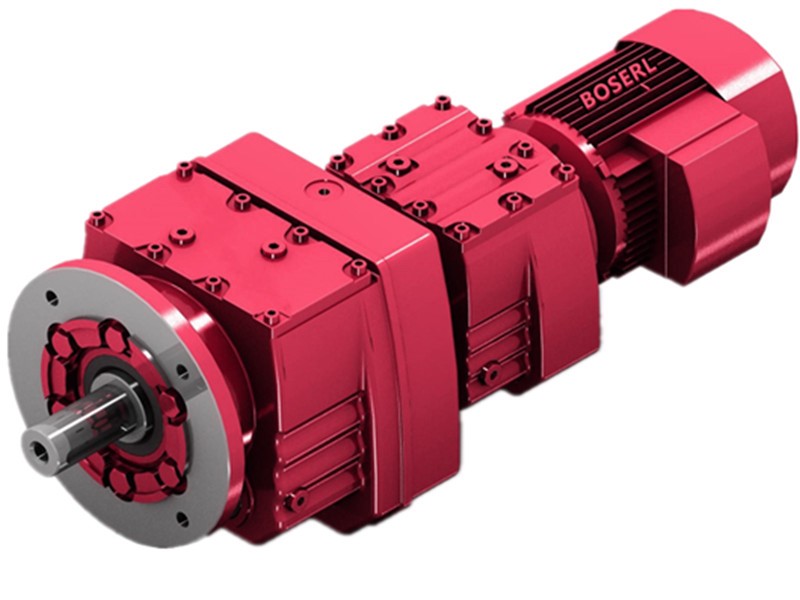

R148R78減速機電機各種輸出實物圖：
R148R78減速機型號：
R147FR77DM100L4,R147FR77DM100LC4,R147FR77DM100LS4,R147FR77DM100M4,R147FR77DM112M4,R147FR77DM132L4,R147FR77DM132M4,R147FR77DM132MC4,R147FR77DM132ML4,R147FR77DM132S4,R147FR77DM160L4,R147FR77DM160MC4,R147FR77DM160S4,R147FR77DM63L4,R147FR77DM63M4,R147FR77DM63MS4,R147FR77DM63S4,R147FR77DM71D4,R147FR77DM71M4,R147FR77DM71MS4,R147FR77DM71S4,R147FR77DM80K4,R147FR77DM80M4,R147FR77DM80MK4,R147FR77DM80N4,R147FR77DM80S4,R147FR77DM90L4,R147FR77DM90M4,R147FR77DM90S4,R147FR77DR100L4,R147FR77DR100LC4,R147FR77DR100LS4,R147FR77DR100M4,R147FR77DR112M4,R147FR77DR132L4,R147FR77DR132M4,R147FR77DR132MC4,R147FR77DR132ML4,R147FR77DR132S4,R147FR77DR160L4,R147FR77DR160MC4,R147FR77DR160S4,R147FR77DR63L4,R147FR77DR63M4,R147FR77DR63MS4,R147FR77DR63S4,R147FR77DR71D4,R147FR77DR71M4,R147FR77DR71MS4,R147FR77DR71S4,R147FR77DR80K4,R147FR77DR80M4,R147FR77DR80MK4,R147FR77DR80N4,R147FR77DR80S4,R147FR77DR90L4,R147FR77DR90M4,R147FR77DR90S4,R147FR77DRE100L4,R147FR77DRE100LC4,R147FR77DRE100LS4,R147FR77DRE100M4,R147FR77DRE112M4,R147FR77DRE132L4,R147FR77DRE132M4,R147FR77DRE132MC4,R147FR77DRE132ML4,R147FR77DRE132S4,R147FR77DRE160L4,R147FR77DRE160MC4,R147FR77DRE160S4,R147FR77DRE63L4,R147FR77DRE63M4,R147FR77DRE63MS4,R147FR77DRE63S4,R147FR77DRE71D4,R147FR77DRE71M4,R147FR77DRE71MS4,R147FR77DRE71S4,R147FR77DRE80K4,R147FR77DRE80M4,R147FR77DRE80MK4,R147FR77DRE80N4,R147FR77DRE80S4,R147FR77DRE90L4,R147FR77DRE90M4,R147FR77DRE90S4,R147FR77DRN100L4,R147FR77DRN100LC4,R147FR77DRN100LS4,R147FR77DRN100M4,R147FR77DRN112M4,R147FR77DRN132L4,R147FR77DRN132M4,R147FR77DRN132MC4,R147FR77DRN132ML4,R147FR77DRN132S4,R147FR77DRN160L4,R147FR77DRN160MC4,R147FR77DRN160S4,R147FR77DRN63L4,R147FR77DRN63M4,R147FR77DRN63MS4,R147FR77DRN63S4,R147FR77DRN71D4,R147FR77DRN71M4,R147FR77DRN71MS4,R147FR77DRN71S4,R147FR77DRN80K4,R147FR77DRN80M4,R147FR77DRN80MK4,R147FR77DRN80N4,R147FR77DRN80S4,R147FR77DRN90L4,R147FR77DRN90M4,R147FR77DRN90S4,R147FR77DRS100L4,R147FR77DRS100LC4,R147FR77DRS100LS4,R147FR77DRS100M4,R147FR77DRS112M4,R147FR77DRS132L4,R147FR77DRS132M4,R147FR77DRS132MC4,R147FR77DRS132ML4,R147FR77DRS132S4,R147FR77DRS160L4,R147FR77DRS160MC4,R147FR77DRS160S4,R147FR77DRS63L4,R147FR77DRS63M4,R147FR77DRS63MS4,R147FR77DRS63S4,R147FR77DRS71D4,R147FR77DRS71M4,R147FR77DRS71MS4,R147FR77DRS71S4,R147FR77DRS80K4,R147FR77DRS80M4,R147FR77DRS80MK4,R147FR77DRS80N4,R147FR77DRS80S4,R147FR77DRS90L4,R147FR77DRS90M4,R147FR77DRS90S4,R147FR77DT100L4,R147FR77DT100LC4,R147FR77DT100LS4,R147FR77DT100M4,R147FR77DT112M4,R147FR77DT132L4,R147FR77DT132M4,R147FR77DT132MC4,R147FR77DT132ML4,R147FR77DT132S4,R147FR77DT160L4,R147FR77DT160MC4,R147FR77DT160S4,R147FR77DT63L4,R147FR77DT63M4,R147FR77DT63MS4,R147FR77DT63S4,R147FR77DT71D4,R147FR77DT71M4,R147FR77DT71MS4,R147FR77DT71S4,R147FR77DT80K4,R147FR77DT80M4,R147FR77DT80MK4,R147FR77DT80N4,R147FR77DT80S4,R147FR77DT90L4,R147FR77DT90M4,R147FR77DT90S4,R147FR77DV100L4,R147FR77DV100LC4,R147FR77DV100LS4,R147FR77DV100M4,R147FR77DV112M4,R147FR77DV132L4,R147FR77DV132M4,R147FR77DV132MC4,R147FR77DV132ML4,R147FR77DV132S4,R147FR77DV160L4,R147FR77DV160MC4,R147FR77DV160S4,R147FR77DV63L4,R147FR77DV63M4,R147FR77DV63MS4,R147FR77DV63S4,R147FR77DV71D4,R147FR77DV71M4,R147FR77DV71MS4,R147FR77DV71S4,R147FR77DV80K4,R147FR77DV80M4,R147FR77DV80MK4,R147FR77DV80N4,R147FR77DV80S4,R147FR77DV90L4,R147FR77DV90M4,R147FR77DV90S4,R147FR77DVE100L4,R147FR77DVE100LC4,R147FR77DVE100LS4,R147FR77DVE100M4,R147FR77DVE112M4,R147FR77DVE132L4,R147FR77DVE132M4,R147FR77DVE132MC4,R147FR77DVE132ML4,R147FR77DVE132S4,R147FR77DVE160L4,R147FR77DVE160MC4,R147FR77DVE160S4,R147FR77DVE63L4,R147FR77DVE63M4,R147FR77DVE63MS4,R147FR77DVE63S4,R147FR77DVE71D4,R147FR77DVE71M4,R147FR77DVE71MS4,R147FR77DVE71S4,R147FR77DVE80K4,R147FR77DVE80M4,R147FR77DVE80MK4,R147FR77DVE80N4,R147FR77DVE80S4,R147FR77DVE90L4,R147FR77DVE90M4,R147FR77DVE90S4,R147FRF77-Y0.12KW,R147FRF77-Y0.18KW,R147FRF77-Y0.25KW,R147FRF77-Y0.37KW,R147FRF77-Y0.37KW,R147FRF77-Y0.55KW,R147FRF77-Y0.75KW,R147FRF77-Y1.1KW,R147FRF77-Y1.5KW,R147FRF77-Y2.2KW,R147FRF77-Y3KW,R147FRF77-Y4KW,R147FRF77-YEJ0.12KW,R147FRF77-YEJ0.18KW,R147FRF77-YEJ0.25KW,R147FRF77-YEJ0.37KW,R147FRF77-YEJ0.55KW,R147FRF77-YEJ0.75KW,R147FRF77-YEJ1.1KW,R147FRF77-YEJ1.5KW,R147FRF77-YEJ2.2KW,R147FRF77-YEJ3KW,R147FRF77-YEJ4KW,R147FRF77-YVP0.12KW,R147FRF77-YVP0.18KW,R147FRF77-YVP0.25KW,R147FRF77-YVP0.55KW,R147FRF77-YVP0.75KW,R147FRF77-YVP1.1KW,R147FRF77-YVP1.5KW,R147FRF77-YVP2.2KW,R147FRF77-YVP3KW,R147FRF77-YVP4KW,R147FRF77-YVPEJ0.12KW,R147FRF77-YVPEJ0.18KW,R147FRF77-YVPEJ0.25KW,R147FRF77-YVPEJ0.37KW,R147FRF77-YVPEJ0.55KW,R147FRF77-YVPEJ0.75KW,R147FRF77-YVPEJ1.1KW,R147FRF77-YVPEJ1.5KW,R147FRF77-YVPEJ2.2KW,R147FRF77-YVPEJ3KW,R147FRF77-YVPEJ4KW。
R148R78減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ynqingyi.com/product/list-rxiliejiansuji-cn.html
推薦型號：R148減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R147FRF77-Y0.12KW R147FRF77-Y0.18KW R147FRF77-Y0.25KW R147FRF77-Y0.37KW R147FRF77-Y0.55KW R147FRF77-Y0.75KW R147FRF77-Y1.1KW R147FRF77-Y1.5KW R147FRF77-Y2.2KW R147FRF77-Y3KW R147FRF77-Y4KW
